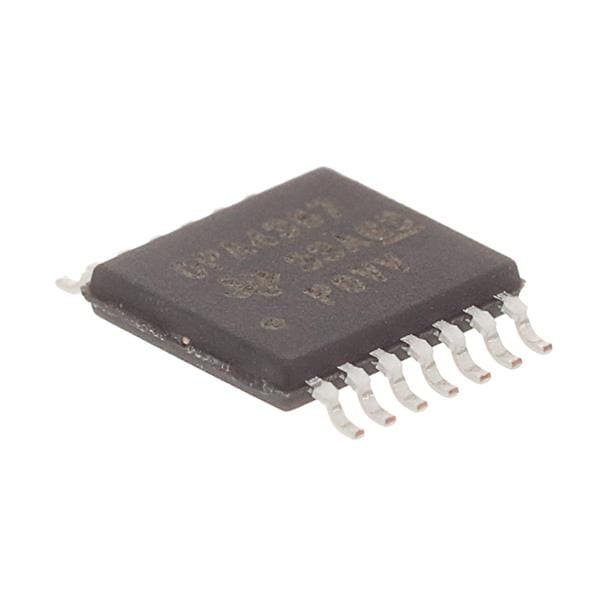

Texas Instruments OPA4387PWT Precision Amplifiers Ultra-high precision (2 V) zero-drift ( OPA4387PWR

Shutdown: No Shutdown

Settling Time: 5.5 us

SR - Slew Rate: 2.8 V/us

THD plus Noise: 0.002 %

Voltage Gain dB: 120 dB

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Ib - Input Bias Current: 300 pA

Operating Supply Current: 570 uA

Vcm - Common Mode Voltage: 5.5 V

Ios - Input Offset Current: 500 pA

Output Current per Channel: 15 mA

Vos - Input Offset Voltage: 2 uV

GBP - Gain Bandwidth Product: 5.7 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 70 fA/sqrt Hz

en - Input Voltage Noise Density: 8.5 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 130 dB
