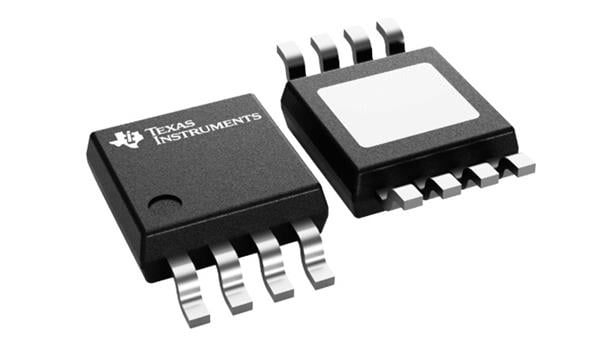

Texas Instruments OPA1633DGNR Differential Audio Operational Amplifier Ultra-low-distortion 195-MHz fully-diffe
ModelOPA1633DGNR
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 97 dB
Class: Class-D
Shutdown: Shutdown
Mounting Style: SMD/SMT
Output Current: 85 mA
SR - Slew Rate: 80 V/us
THD plus Noise: 132 dB
Moisture Sensitive: Yes
Supply Voltage - Max: 17.5 V
Supply Voltage - Min: 2.5 V
Ib - Input Bias Current: 6.8 uA
Vos - Input Offset Voltage: 200 uV
GBP - Gain Bandwidth Product: 200 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
en - Input Voltage Noise Density: 1.1 nV/vHz
