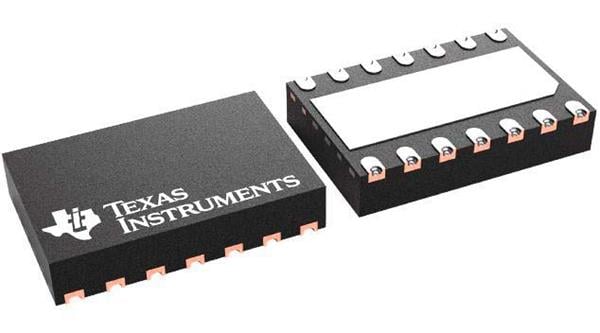

Texas Instruments LP8865ZQDMTRQ1 Non-Synchronous Multi-Topology LED Driver Automotive 65-V 2-A buck LED driver wit

Dimming: Analog, Flexible, Hrbrid, PWM

Features: Cycle-by-Cycle Over-Current Protection, Fault Output, Integrated Switching FET, LED Open Detection, LED Short Detection, Programable Switching Frequency, Spread Spectrum, Thermal Foldback, Thermal Shutdown

Topology: Buck

Mounting Style: SMD/SMT

Output Current: 2 A

Number of Outputs: 1 Output

Number of Channels: 1 Channel

Input Voltage - Max: 65 V

Input Voltage - Min: 4.5 V

Operating Frequency: 100 kHz to 2.2 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
