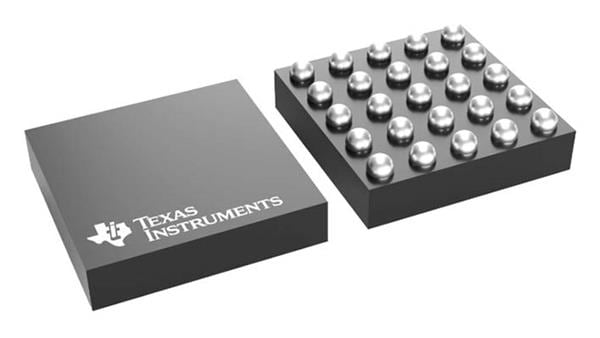

Texas Instruments LM3645YCGR LED Flash Drivers Synchronous boost qu ad LED flash driver

Dimming: I2C, PWM

Topology: Boost, Current Source

Input Voltage: 2.5 V to 5.5 V

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 2.5 V to 5.5 V

Development Kit: LM3645EVM

Number of Outputs: 4 Output

Number of Channels: 4 Channel

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2.5 V

Operating Frequency: 4 MHz

Supply Current - Max: 1 mA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
