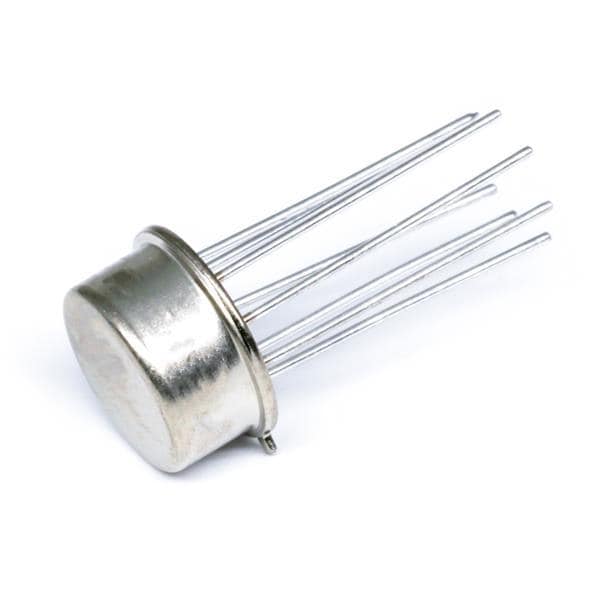

Texas Instruments LM201AH/NOPB Precision Amplifiers Operational Amp

Width: 9.14 mm

Height: 4.45 mm

Length: 9.14 mm

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Technology: Bipolar

Supply Type: Dual

Unit Weight: 1.570 g

Mounting Style: Through Hole

SR - Slew Rate: 500 mV/us

Voltage Gain dB: 104.08 dB

Number of Channels: 1 Channel

Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V

Supply Voltage - Max: 44 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 1.2 W

Ib - Input Bias Current: 30 nA

Operating Supply Current: 1.8 mA

Operating Supply Voltage: 10 V to 44 V

Output Current per Channel: 27 mA

Vos - Input Offset Voltage: 700 uV

Maximum Dual Supply Voltage: +/- 22 V

Minimum Dual Supply Voltage: +/- 5 V

GBP - Gain Bandwidth Product: 1 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.1 pA/sqrt Hz

en - Input Voltage Noise Density: 15 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 96 dB
