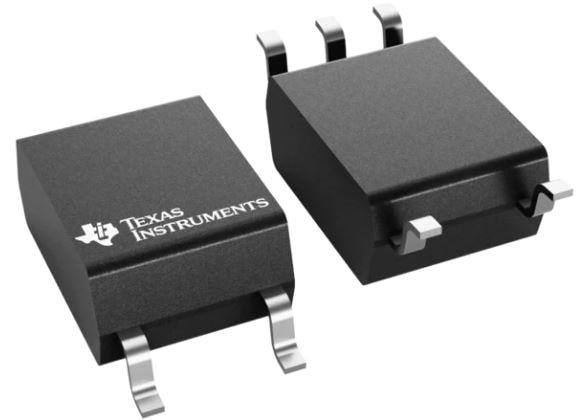

Texas Instruments ISOM8710DFFR High Speed Single Channel Opto-Emulator DC input logic outp ut single-channel h

Fall Time: 10 ns

Rise Time: 10 ns

Output Type: CMOS

Mounting Style: SMD/SMT

Isolation Voltage: 3750 Vrms

Maximum Baud Rate: 25 Mb/s

Moisture Sensitive: Yes

Number of Channels: 1 Channel

If - Forward Current: 20 mA

Vf - Forward Voltage: 1.5 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 70 mW

Propagation Delay - Max: 52 ns

Operating Supply Voltage: 2.7 V to 5.5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Maximum Continuous Output Current: 15 mA
