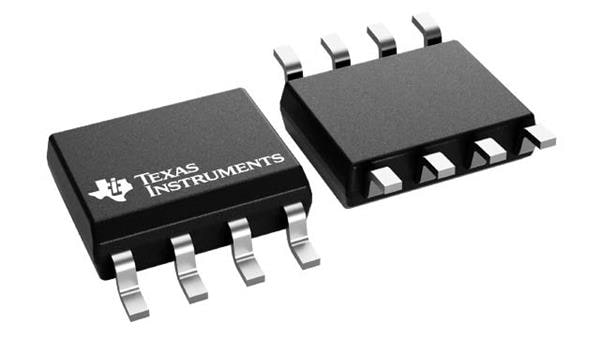

Texas Instruments INA241A1QDRQ1 Ultra-Precise Current Sense Amplifiers AEC-Q100 -4V to 110 V bidirectional ultr

Accuracy: 0.002 %

Gain V/V: 10 V/V

Shutdown: No Shutdown

Gain Error: 0.002 %

Qualification: AEC-Q100

Settling Time: 1.5 us

Amplifier Type: Bidirectional High-Speed

Mounting Style: SMD/SMT

SR - Slew Rate: 8 V/us

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 20 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 35 uA

Operating Supply Current: 2.5 mA

Vcm - Common Mode Voltage: - 5 V to 110 V

Vos - Input Offset Voltage: 5 uV

GBP - Gain Bandwidth Product: 1.1 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 62 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 150 dB
