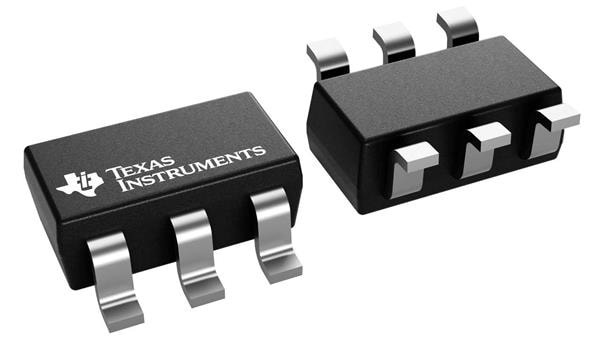

Texas Instruments INA186A2IDCKRG4 Bidirectional, High-Precision Current Sense Amplifiers 40-V, bidirectional, high-precision current sense amplifier with picoamp input bias & ENABLE

Gain V/V: 50 V/V

Shutdown: Shutdown

Gain Error: 1 %

Technology: Si

Output Type: Analog, Rail-to-Rail

Settling Time: 30 us

3 dB Bandwidth: 37 kHz

Amplifier Type: Current Sense Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 0.3 V/us

Development Kit: INA186EVM

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Ib - Input Bias Current: 3 nA

Operating Supply Current: 90 uA

Vcm - Common Mode Voltage: - 200 mV to 40 V

Ios - Input Offset Current: 70 pA

Vos - Input Offset Voltage: 50 uV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 75 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 120 dB

PSRR - Power Supply Rejection Ratio: 10 uV/V
