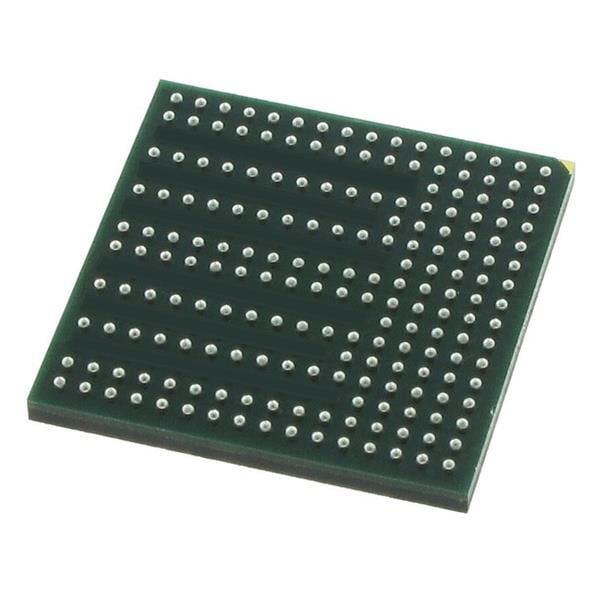

Texas Instruments DDC1128ZKLT Current Input ADC 128CH Current-Input ADC

Features: Computed Tomography (CT)

Shutdown: No Shutdown

Input Type: Single-Ended

Resolution: 20 bit

Output Type: Digital

Unit Weight: 241.800 mg

Architecture: Sigma-Delta

Sampling Rate: 6.25 kS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: External

Moisture Sensitive: Yes

Number of Channels: 128 Channel

Number of ADC Inputs: 128 Input

Number of Converters: 1 Converter

Analog Supply Voltage: 4.9 V to 5.1 V

Digital Supply Voltage: 2.7 V to 3.6 V

INL - Integral Nonlinearity: 0.05 % FSR

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
