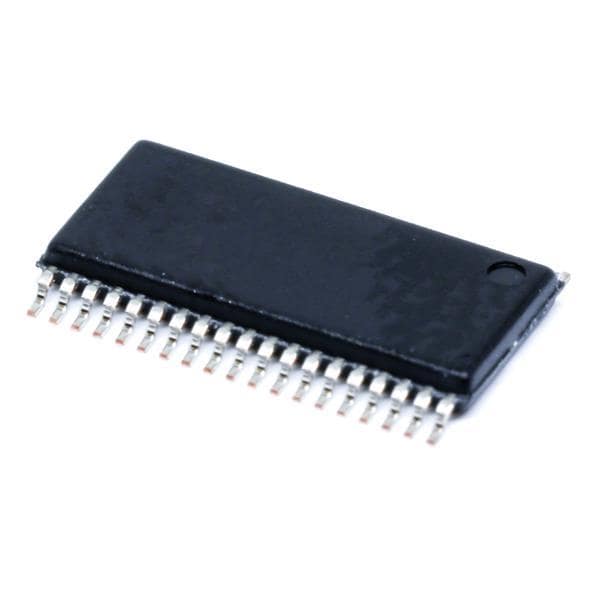

Texas Instruments DAC8822QBDBTR DACs - Digital to Analog Converters 16-Bit Dual Parallel Interface A 595-DAC8822QBDBT

Height: 1.15 mm

Features: Reset to Mid-Scale

Gain Error: 0.04 % FSR

Resolution: 16 bit

Output Type: Current

Unit Weight: 203.800 mg

Architecture: R-2R

Sampling Rate: 2 MS/s

Interface Type: Parallel

Mounting Style: SMD/SMT

Power Consumption: 25 uW

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Number of Converters: 2 Converter

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Operating Supply Voltage: 3.3 V, 5 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
