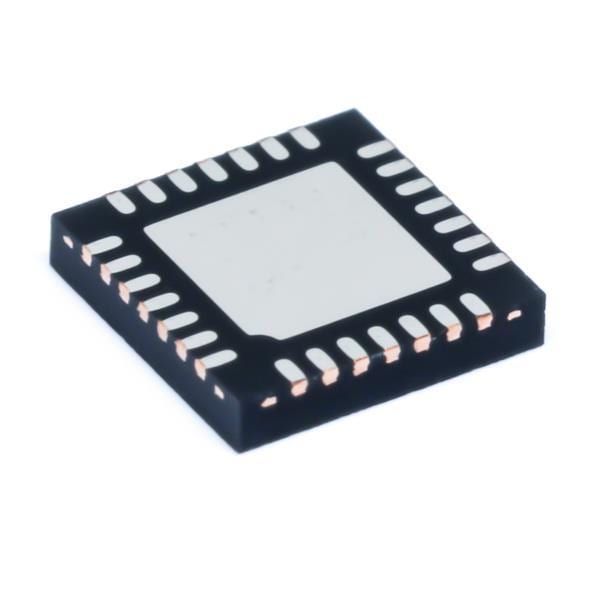

Texas Instruments CC2520RHDR Zigbee 2nd Gen 2.4 GHz Zig Bee transceiver A 595-CC2520RHDT

Technology: Si

Sensitivity: - 98 dBm

Unit Weight: 71.600 mg

Output Power: 5 dBm

Interface Type: GPIO, Serial

Mounting Style: SMD/SMT

Frequency Range: 2.394 GHz to 2.507 GHz

Maximum Data Rate: 250 kbps

Modulation Format: OQPSK

Moisture Sensitive: Yes

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.8 V

Operating Supply Voltage: 1.8 V to 3.8 V

Supply Current Receiving: 18.5 mA

Maximum Operating Frequency: 2.507 GHz

Operating Temperature Range: - 40 C to + 125 C

Supply Current Transmitting: 37.5 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
