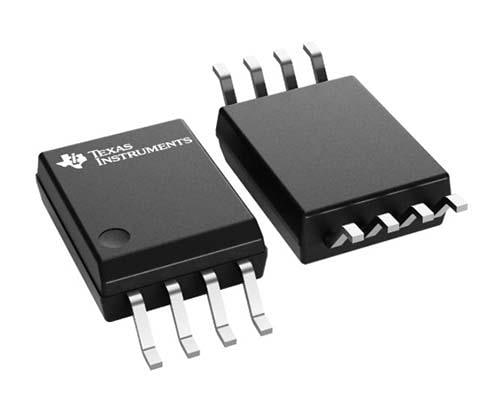

Texas Instruments AMC1303M2520FDWVR Isolated Delta-Sigma Modulators +/-250mV input prec ision current sensin

Shutdown: No Shutdown

Gain Error: 0.2 %

Architecture: Sigma-Delta

Sampling Rate: 20 MS/s

Interface Type: Serial

Mounting Style: SMD/SMT

Development Kit: AMC1303EVM

Power Consumption: 36 mW

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Analog Supply Voltage: 3 V to 5.5 V

Digital Supply Voltage: 2.7 V to 5.5 V

Pd - Power Dissipation: 93.5 mW

INL - Integral Nonlinearity: 1 LSB

SNR - Signal to Noise Ratio: 84.5 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.99 LSB

THD - Total Harmonic Distortion: - 97 dB

SFDR - Spurious Free Dynamic Range: 98 dB

SINAD - Signal to Noise and Distortion Ratio: 87 dB
