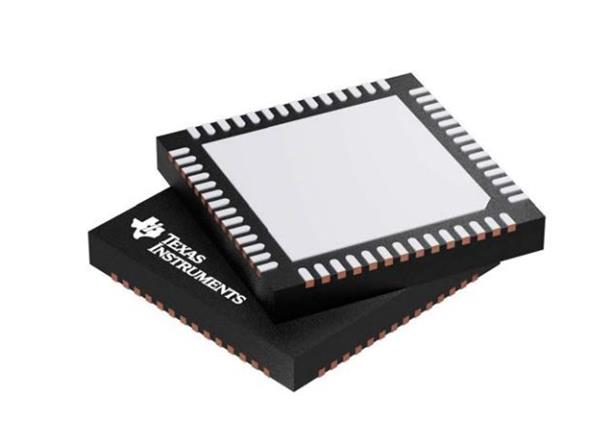

Texas Instruments ADS9817RSHT Simultaneous-Sampling ADC Eight-channel 18-bi t 2-MSPS/ch dual si

Shutdown: No Shutdown

Input Type: Differential/Single-Ended

Resolution: 18 bit

Architecture: SAR

Sampling Rate: 2 MS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: Internal

Reference Voltage: 4.096 V

Moisture Sensitive: Yes

Number of Channels: 8 Channel

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 1.75 V

Analog Supply Voltage: 5 V

Digital Supply Voltage: 1.8 V

Pd - Power Dissipation: 232 mW

INL - Integral Nonlinearity: 1.5 LSB

SNR - Signal to Noise Ratio: 85.5 dBFS, 92 dBFS

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.5 LSB

THD - Total Harmonic Distortion: - 113 dB

SFDR - Spurious Free Dynamic Range: 113 dB

SINAD - Signal to Noise and Distortion Ratio: 85.1 dB, 91.3 dB
