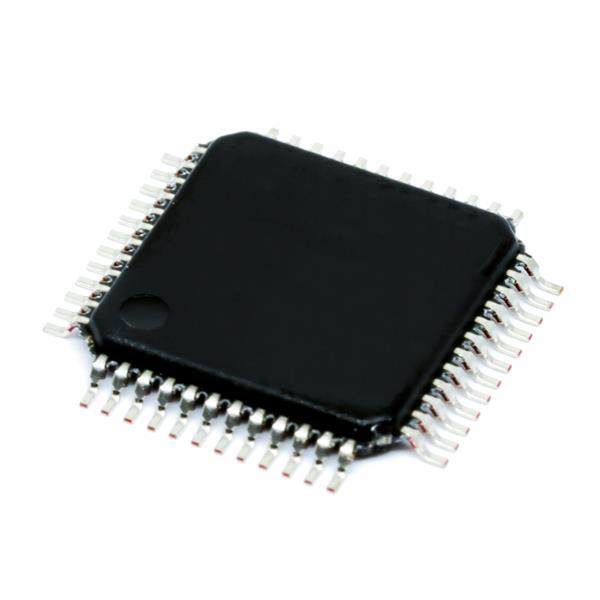

Texas Instruments ADS8422IBPFBR ADCs - Analog to Digital Converters 16 Bit MSPS Parallel ADC w/Ref A 595-ADS8422IBPFBT

Width: 7 mm

Height: 1 mm

Length: 7 mm

Features: Oscillator

Input Type: Differential/Pseudo-Differential

Resolution: 16 bit

Unit Weight: 137.400 mg

Architecture: SAR

Sampling Rate: 4 MS/s

Interface Type: Parallel

Mounting Style: SMD/SMT

Reference Type: External, Internal

Development Kit: ADS8422EVM

Power Consumption: 155 mW

Reference Voltage: 4.75 V

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Analog Supply Voltage: 4.75 V to 5.25 V

Digital Supply Voltage: 2.7 V to 5.25 V

Operating Supply Voltage: 4.75 V to 5.25 V

INL - Integral Nonlinearity: +/- 2 LSB

SNR - Signal to Noise Ratio: 92 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: - 1 /1.5 LSB

SINAD - Signal to Noise and Distortion Ratio: 92.5 dB
