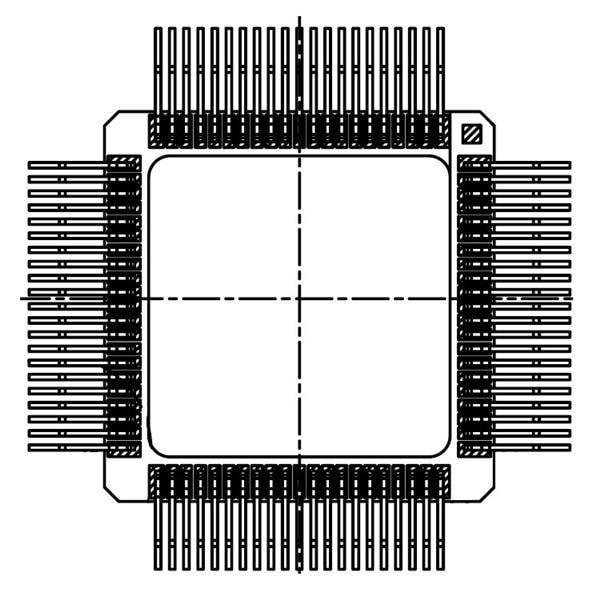

Texas Instruments ADS1278SHKP ADCs - Analog to Digital Converters High Temp Quad/Octal Sim Sampling,24B ADC

Features: Daisy-Chainable

Input Type: Differential

Resolution: 24 bit

Unit Weight: 296 g

Architecture: Sigma-Delta

Sampling Rate: 144 kS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: External

Development Kit: HEATEVM

Power Consumption: 530 mW

Reference Voltage: 4.75 V

Number of Channels: 8 Channel

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Analog Supply Voltage: 5 V

Digital Supply Voltage: 1.8 V

Operating Supply Voltage: 4.75 V to 5.25 V

INL - Integral Nonlinearity: 0.0014 % FSR

SNR - Signal to Noise Ratio: 111 dB

Maximum Operating Temperature: + 210 C

Minimum Operating Temperature: - 55 C

ENOB - Effective Number of Bits: 17.4 Bit

SFDR - Spurious Free Dynamic Range: 109 dB

SINAD - Signal to Noise and Distortion Ratio: 106 dB
