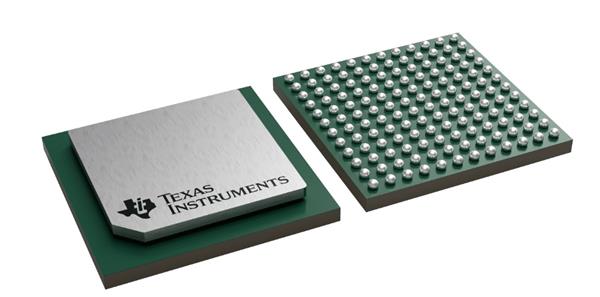

Texas Instruments ADC12DJ5200SEAAV RF Sampling Analog to Digital Converter Singled-ended input RF-sampling 12-bit A

Features: Noiseless Aperture Delay

Shutdown: No Shutdown

Input Type: Differential

Resolution: 12 bit

Architecture: Pipeline

Sampling Rate: 10.4 GS/s

Interface Type: Serial

Mounting Style: SMD/SMT

Power Consumption: 4 W

Moisture Sensitive: Yes

Supply Voltage - Max: 2 V

Supply Voltage - Min: 1.8 V

Pd - Power Dissipation: 4.01 W

SNR - Signal to Noise Ratio: 55.1 dBFS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

ENOB - Effective Number of Bits: 8.5 Bit

SINAD - Signal to Noise and Distortion Ratio: 54.6 dBFS
