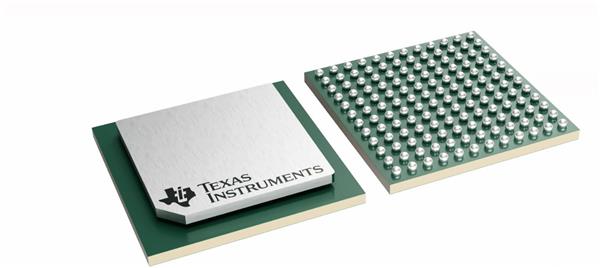

Texas Instruments ADC12DJ5200ALREP Analog to Digital Converters Enhanced-product 12- bit ADC with dual-ch

Shutdown: No Shutdown

Input Type: Differential

Resolution: 12 bit

Architecture: SAR

Sampling Rate: 5.2 GS/s, 10.4 GS/s

Interface Type: Serial

Mounting Style: SMD/SMT

Reference Type: External

Power Consumption: 4 W

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Number of Converters: 2 Converter

Supply Voltage - Max: 2 V

Supply Voltage - Min: 1.05 V

Analog Supply Voltage: 1.05 V to 2 V

FPBW - Full Power Bandwidth: 8.1 GHz

INL - Integral Nonlinearity: 2 LSB

SNR - Signal to Noise Ratio: 55.6 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

ENOB - Effective Number of Bits: 8.8 bit

SFDR - Spurious Free Dynamic Range: 65 dB

SINAD - Signal to Noise and Distortion Ratio: 56.3 dBFS
