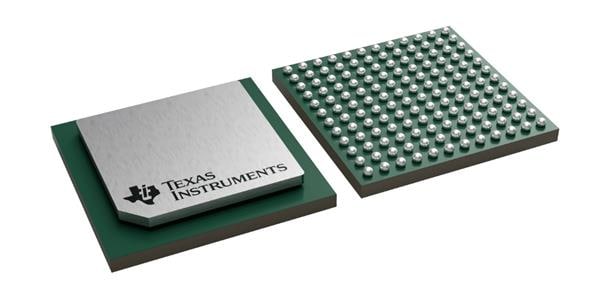

Texas Instruments ADC12DJ4000RFAAVT Analog to Digital Converters RF-sampling 12-bit A DC with 4-GSPS dual

Shutdown: No Shutdown

Input Type: Differential

Resolution: 12 bit

Output Type: Differential

Architecture: SAR

Sampling Rate: 4 GS/s, 8 GS/s

Interface Type: Serial

Mounting Style: SMD/SMT

Development Kit: ADC12DJ4000RFEVM

Moisture Sensitive: Yes

Number of Channels: 1 Channel/2 Channel

Number of Converters: 2 Converter

Supply Voltage - Max: 2 V

Supply Voltage - Min: 1.05 V

Analog Supply Voltage: 1.05 V to 1.15 V, 1.8 V to 2 V

Digital Supply Voltage: 1.05 V to 1.15 V

Pd - Power Dissipation: 4.7 W

FPBW - Full Power Bandwidth: 8 GHz

INL - Integral Nonlinearity: 1 LSB

SNR - Signal to Noise Ratio: 58.5 dBFS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.14 LSB

ENOB - Effective Number of Bits: 9.3 bits

SFDR - Spurious Free Dynamic Range: 75 dBFS

SINAD - Signal to Noise and Distortion Ratio: 57.4 dBFS
