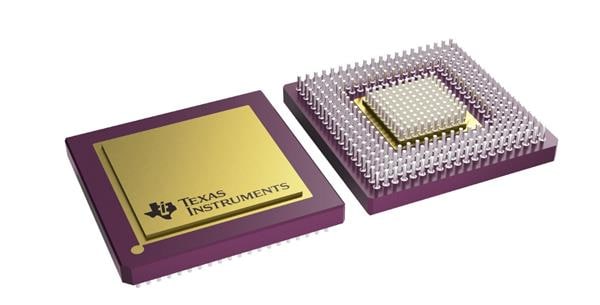

Texas Instruments 5962F1220502VXF High-Speed ADCs Radiation-hardness-a ssured (RHA) QMLV

Shutdown: No Shutdown

Input Type: Differential

Resolution: 12 bit

Output Type: LVDS

Architecture: Folding Interpolating

Sampling Rate: 1.6 GS/s, 3.2 GS/s

Interface Type: Parallel LVDS

Mounting Style: SMD/SMT

Power Consumption: 4.4 W

Number of Channels: 1 Channel/2 Channel

Supply Voltage - Max: 2 V

Supply Voltage - Min: 1.8 V

Analog Supply Voltage: 1.8 V to 2 V

Digital Supply Voltage: 1.8 V to 2 V

INL - Integral Nonlinearity: +/- 2.5 LSB

SNR - Signal to Noise Ratio: 56.9 dBFS, 58.4 dBFS, 58.6 dBFS

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

DNL - Differential Nonlinearity: +/- 0.5 LSB

ENOB - Effective Number of Bits: 8.9 bit, 9.1 bit

THD - Total Harmonic Distortion: - 62 dBFS, - 62.3 dBFS, - 63.2 dBFS

SFDR - Spurious Free Dynamic Range: 61.7 dBFS, 62.1 dBFS, 63.3 dBFS

SINAD - Signal to Noise and Distortion Ratio: 55.5 dB, 56.5 dBFS, 56.6 dBFS
