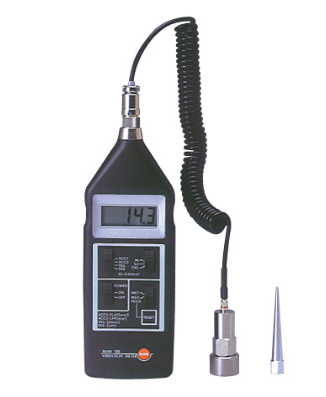

TESTO OH-580A Digital Vibration Meter (1.0 – 199.9 m/s²)

Main Unit Dimensions (mm): 72 × 24 × 220

Weight (g): 200 (including dry batteries)

Detection Method: RMS (Root Mean Square) detection

Measurement Accuracy: Within ±5% of FS

Display Update Rate: 3 times/second

Power Supply: 2 × AA dry batteries (included), AC 100 V (optional)

Acceleration (ACC1):

Frequency Range: 10 – 6000 Hz

High Range: 1.0 – 199.9 m/s²

Low Range: 0.1 – 19.99 m/s²

Acceleration (ACC2):

Frequency Range: 10 – 300 Hz

High Range: 1.0 – 199.9 m/s²

Low Range: 0.1 – 19.99 m/s²

Velocity (VEL):

Frequency Range: 10 – 1000 Hz

High Range: 1.0 – 199.9 mm/s

Low Range: 0.1 – 19.99 mm/s

Displacement (DIS):

Frequency Range: 10 – 1000 Hz

High Range: 10 – 1999 μm

Low Range: 1 – 199.9 μm
