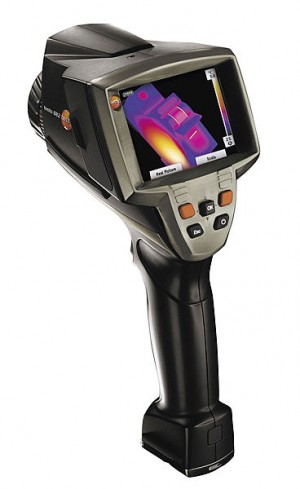

TESTO 882 Thermal Camera (640 x 480 pixels)

Infrared image output

Focusmanual and motor focus

Infrared resolution320 x 240 pixel

Image refresh rate33 Hz

SuperResolution (IFOV)1.1 mrad

SuperResolution (Pixel)640 x 480 pixels

Geometric resolution (IFOV)1.7 mrad

Minimum focus distance0.2 m

Field of view32° x 23°

Thermal sensitivity<50 mK at +30 °C

Image output visual

Minimum focus distance0.4 m

Image size640 x 480 pixels

Image presentation

Display optionIR image only; real image only; IR image / real image

Colours10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

Display type3.5" LCD with 320 x 240 pixels

Video outputUSB 2.0

Measurement

Reflected temperaturemanual

Measuring range-20 to +100°C; 0 to +350 °C (switchable)

High temperature measuring+350 to +550 °C

Accuracy±2 °C,; ±2% of mv / (±3% of mv at +350 to +550 °C)

Measurement

Measuring function

Surface moisture distributionIncluded

Humidity measurementOptional

Solar mode – manualIncluded

Analysis functionUp to 2 measurement points, hot/cold spot recognition, isotherms, area measurement (min/max on area)

Imager equipment

Digital cameraIncluded

Video streamingIncluded

Voice recordingwired headset

LaserIncluded

Standard lens32° x 23°

Power-LEDIncluded

Imager storage

File format image.bmt; export option in .bmp; .jpg; .png; .csv; .xls

Storage deviceSD card 2 GB (approx. 1.000 images)

Power supply

Battery typeFast-charging, Li-ion battery can be changed on-site

Operating time4 h

Charging optionsIn instrument / charger (optional)

Mains operationyes

Ambient Condition

Storage temperature-30 °C; 60 °C

Operating temperature-15 °C; 40 °C

Housing protection classIP54

Vibration2G

Air humidity20 to 80 %RH non-condensing

Physical specification

Weight900 g

Tripod mountingM6

HousingABS

Dimensions152 x 108 x 262

PC software

System requirementsWindows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0

Standards, tests, warrenty

EU-/EG-guidelines2004/108/EG
