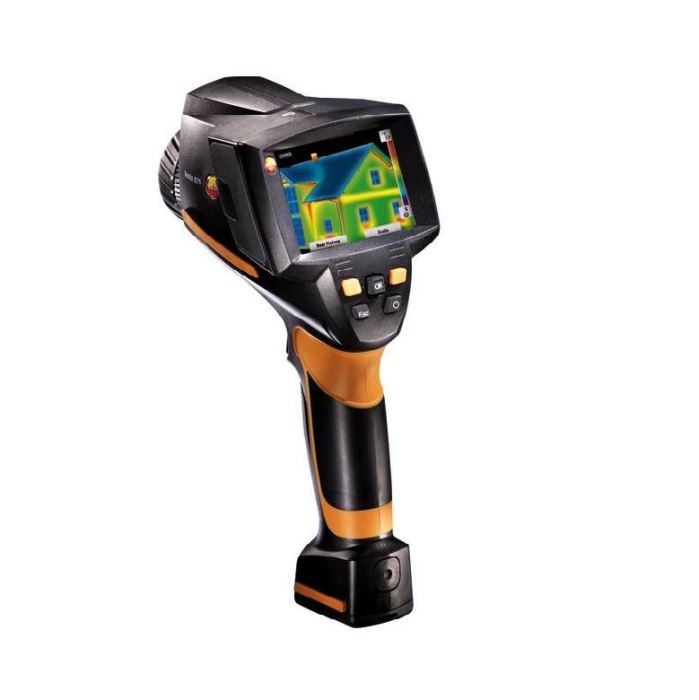

TESTO 875-2i Infrared camera with Super Resolution (160 x 120 pixels)

Infrared image output

Focus: manual

Infrared resolution: 160 x 120 pixels

Image refresh rate: 33 Hz

Super Resolution (IFOV): 2.1 mrad (Tele: 0.6 mrad)

Super Resolution (Pixel): 320 x 240 pixels

Geometric resolution (IFOV): 3.3 mrad (Tele: 1.0 mrad)

Minimum focus distance: 0.1 m (Tele: 0.5 m)

Field of view: 32° x 23°

Thermal sensitivity: ˂ 50 mK at +30 °C

Image output visual

Minimum focus distance: 0.4 m

Image size: 640 x 480 pixels

Image presentation

Display option: IR image only; real image only; IR image / real image

Number of colours: 10

Colours: 10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

Display type: 3.5" LCD with 320 x 240 pixels

Video output: USB 2.0

Measurement

Reflected temperature: manual

Measuring range: -30 to +100°C; 0 to +350 °C (switchable)

High temperature measuring: +350 to +550 °C

Accuracy: ±2 °C, ±2 % of m.v. (±3 °C of m.v. at -30 to -22 °C)

Accuracy high temperature: ±3 % of m.v. at +350 to +550 °C

Measuring function

Surface moisture distribution: Included

Humidity measurement: Optional

Solar mode – manual: Included

Analysis function: Up to 2 measurement points, hot/cold spot recognition, isotherms, area measurement (min/max on area)

Imager equipment

Digital camera: Included

Video streaming: Included

Voice recording: wired headset

Laser: Included

Exchangeable lenses: 9° x 7°

Standard lens: 32° x 23°

Power-LED: Included

Imager storage

File format image: .bmt; export option in .bmp; .jpg; .png; .csv; .xls

Storage device: SD card 2GB (approx. 2.000 images)

Power supply

Battery type: Fast-charging, Li-ion battery can be changed on-site

Operating time: 4 h

Charging options: In instrument / charger (optional)

Mains operation: yes

Ambient Condition

Storage temperature: -30 °C; 60 °C

Operating temperature: -15 °C; 40 °C

Housing protection class: IP54

Vibration: 2G

Air humidity: 20 to 80 %RH non-condensing

Physical specification

Weight: 900 g

Tripod mounting: M6

Housing: ABS

Dimensions: 152 x 108 x 262

PC software

System requirements: Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0

Standards, tests, warrenty

EU-/EG-guidelines: 2004/108/EG

Standard delivery: a robust case, professional software, soft case, carrying strap, SD card, USB cable, lens cleaning cloth, mains unit, rechargeable Li-ion battery,tripod adapter and headset
