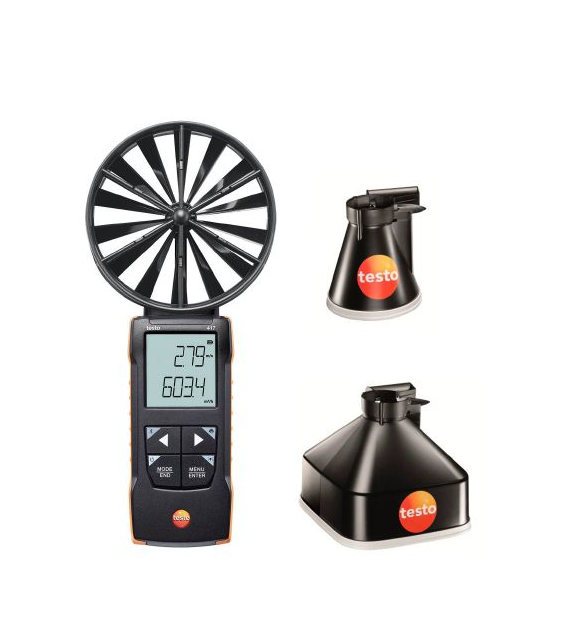

TESTO 417 Set 1 Vane anemometer with measurement funnels (0.3 ~ 20 m/s)

Temperature - NTC

Measuring range: 0 to +50 °C

Accuracy: ±0.5 °C

Resolution: 0.1 °C

Velocity - Vane

Measuring range: 0.3 to 20 m/s

Accuracy: ±(0.1 m/s + 1.5 % of mv)

Resolution: 0.01 m/s

Volume flow

Measuring range: 0 to +99999 m³/h

0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))

0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))

Resolution

0.1 m³/h (0 to +100 )

1 m³/h (Remaining Range)

General technical data

Weight: 243 g

Dimensions: 236 x 108 x 45 mm

Operating temperature: -20 to +50 °C

Product-/housing material: ABS + PC / TPE

Protection class: IP40, IP20

Battery life: 50 h

Battery type: 3x AA

Storage temperature: -20 to +50 °C

Includes

testo 417 - 100 mm vane anemometer with App connection

Measuring funnel for plate outlets

Measuring funnel for ventilation grilles

Transport bag

Calibration protocol

3 x AA batteries

Datasheet
