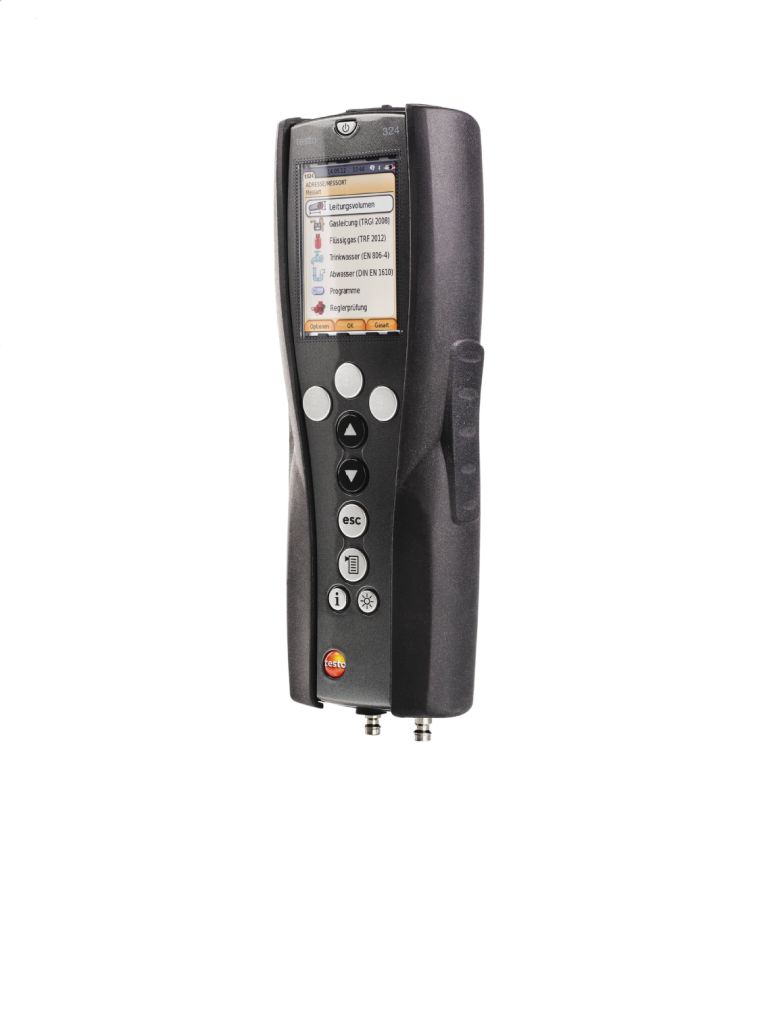

TESTO 324 Pressure/gas Leak Detector

Temperature - NTC

Measuring range: -20 to +100°C

Temperature - TC Type K (NiCr-Ni)

Measuring range: -40 to +600 °C

Accuracy: ±0.5 °C or ±0.5 %

Absolute Pressure

Measuring range: 600 to 1150 hPa

Accuracy: ±3 hPa

Overload to 1200 hPa

Leakage measurement

Measuring range: 0 to 10 l/h

Accuracy: ±0.2 l/h or ±5 % of mv

Resolution: 0.1 l/h

Pressure measurement

Measuring range: 0 to 1000 hPa

Accuracy: ±0.5 hPa or ±3 % of mv

Pressure measurement (external probe)

Measuring range: 0 to 25 bar

Accuracy:

±0.6 % fs (0 to 10 bar)

±0.6 % fs (> 10 to 25 bar)

General technical data

Overload 1200 hPa

Dimensions: 270 x 90 x 75 mm

Operating temperature: +5 to +40 °C

Protection class: IP40 acc. to EN 60529

Additional probe sockets: 2 Hirschmann sockets for connecting pressure and temperature probes

Gas connections: 2 pressure connections DN 5

DVGW permit according to 5925: Instrument class L up to volume = 200 litres

Storage temperature: -20 to +50 °C

Weight: 1070 g

Pipe volume calculation: max. 1200 ±0.2 or ±5 (1 to 200 l)
