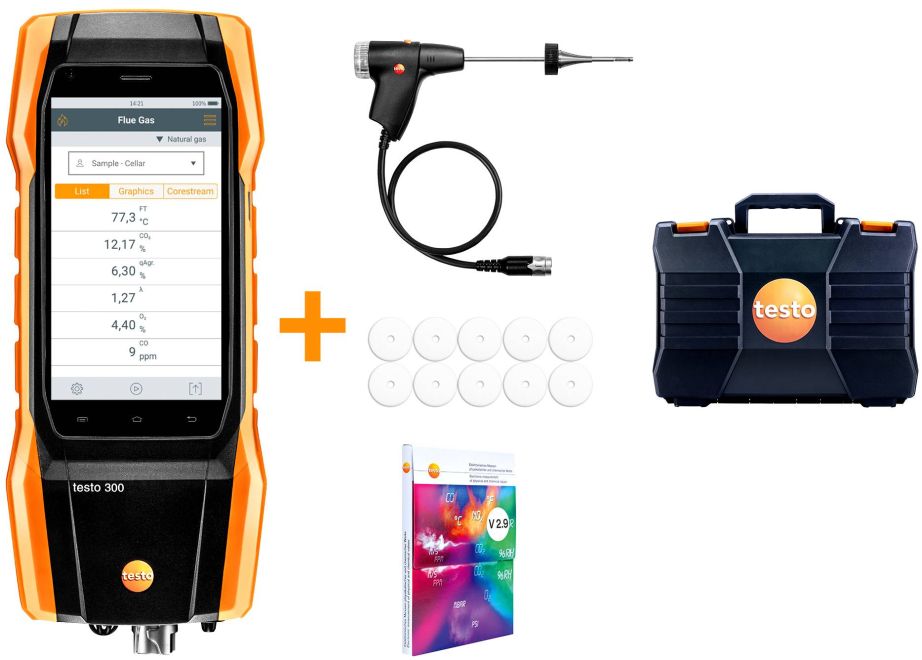

TESTO 300 LL Longlife kit 2 - Flue gas analyzer

- Temperature - TC Type K (NiCr-Ni):

Measuring range: -40 to +1200 °C

Accuracy:

±0.5 °C (0.0 to +100.0 °C)

±0.5 % of mv (Remaining Range)

Resolution:

0.1 °C (-40 to +999.9 °C)

1 °C (Remaining Range)

- Differential Pressure - Piezoresistive:

Measuring range: -100 to +200 hPa

Accuracy:

±0.5 hPa (0 to +50.0 hPa)

±1 % of mv (+50.1 to +100.0 hPa)

±1.5 % of mv (+100.1 to +200 hPa)

Resolution: 0.01 hPa

- Flue gas O₂:

Measuring range: 0 to 21 Vol.%

Accuracy: ±0.2 Vol.%

Resolution: 0.1 Vol.%

- CO determination (with H₂-compensation), automatic dilution:

Measuring range: 0 to 30000 ppm

Accuracy: ±100 ppm or ±10 % of mv

Resolution: 1 ppm

- Flue gas NO:

Measuring range: 0 to 3000 ppm

Accuracy:

±5 ppm (0 to 100 ppm)

±5 % of mv (101 to 2000 ppm)

±10 % of mv (2001 to 3000 ppm)

Resolution: 1 ppm

- Ambient CO:

Measuring range: 0 to 2000 ppm

Accuracy:

±10 ppm (0 to 100 ppm)

±10 % of mv (101 to 2000 ppm)

Resolution: 1 ppm

- General technical data:

Operating humidity: 15 to 90 %RH non-condensing

Dimensions: 244 (including probe connection) x 98 x 59 LxWxH

Operating temperature: -5 to +45 °C

Protection class: IP40

Product colour: black/orange

Display type: 5.0" touch display, HD 1280*720 pixels, IPS (160 k)

Power supply: Rechargeable battery, USB mains unit

Memory: 1,000,000 measuring values

Storage battery type: Lithium ion battery

Battery life: 10 h

Storage temperature: -20 to +50 °C

Charging temperature: 0 to +45 °C
