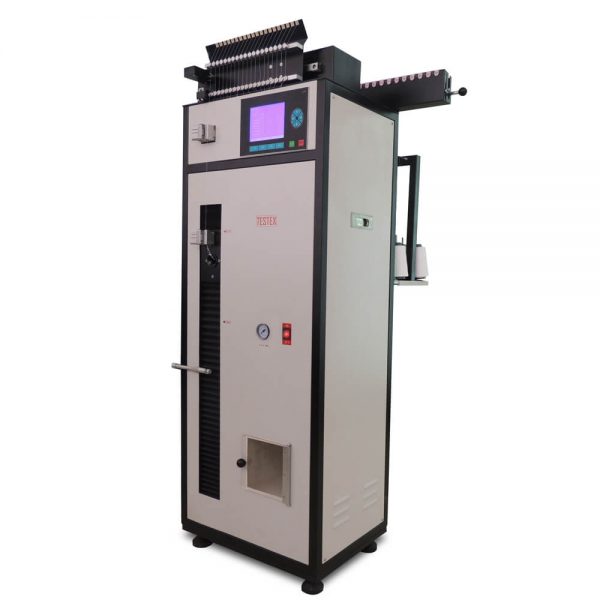

Testex TY400C Automatic Single Yarn Strength Tester

Power: 220V 50 Hz 0.4 ~ 0.8mPa

Weight: 140 kg

Dimensions: 550 x 450 x 1600 mm (L x W x H)

Test range: 20cN ~ 6000cN

Accuracy: ≤ 1% F. S

Sampling range: 0 ~ 9 m

Pre-tension load: 0 ~ 100cN, adjustable

Elongation range: 800 mm

Gauge length: 250 mm (stretching rate 220%), 500 mm (stretching rate 160%)

Tensile speed: 50 ~ 5000 mm/min, adjustable

Standards: ASTM D2256, ISO2062, GB/T398, GB5324, GB/T14344, BS, JIS, AS, CAN/CGSB

Features

Working pattern is CRE principle.

Automatic feeding of yarn, and automatic clamping for test, fast and without damages to yarn

Fitted with Waste yarn collecting device, to make labs clean

Test up to 20 cops at the same time
