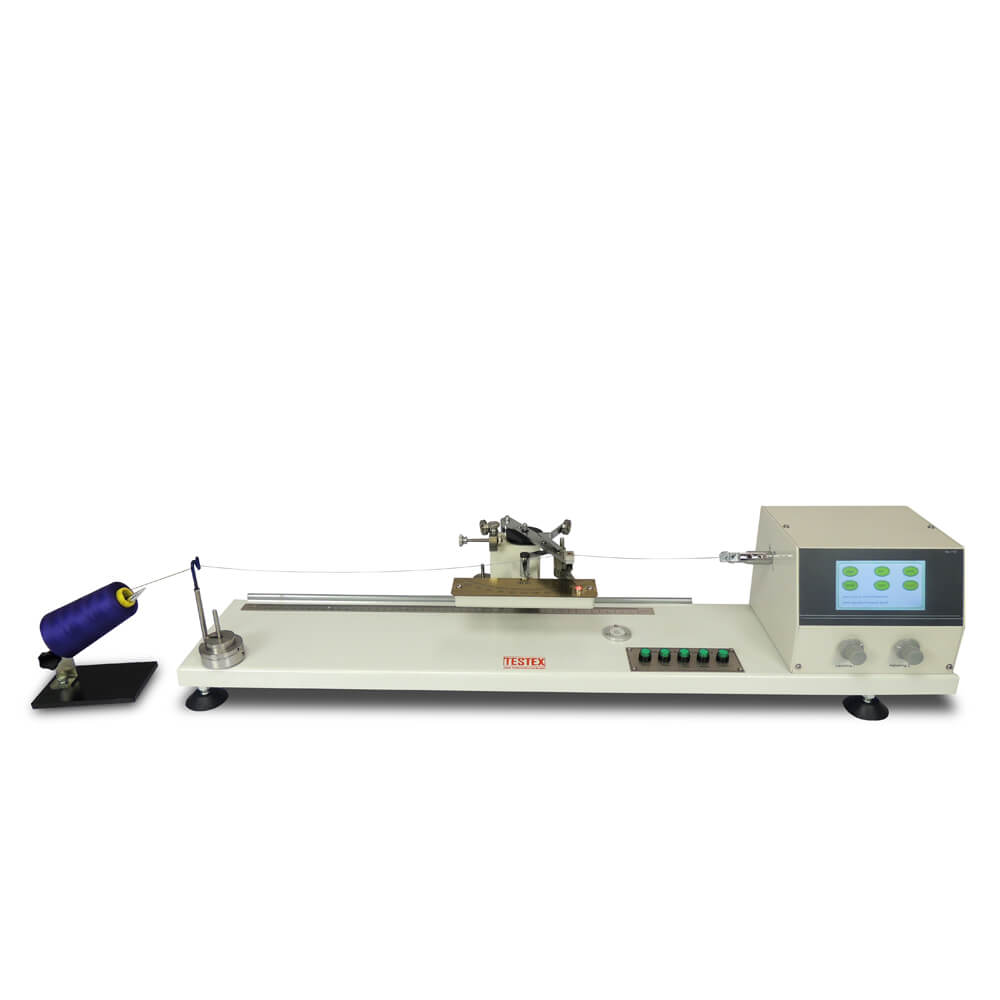

Testex TY370 Twist Tester

Power: 220/110V 50/60 Hz

Weight: 24 kg

Dimensions: 1010 x 360 x 350 mm (L x W x H)

Touch screen

4 test methods: Direct counting, untwist/re-twist, 3-times untwist/re-twist method, etc.

Length of specimen: 10 ~ 500 mm adjustable

Twist speed: 100 ~ 1900 rpm

Yarn count range: 1 ~ 499.9 tex

Units: TPM / TPI

Twist range: 9999 twists

Standards: ISO 2061, ASTM D1422/1423, BS 2085, DIN 53832, IWTO 25-70

Twist Tester, is used to get the coefficient of twist, which is a measurement of the level of twist of the yarn, suitable for testing single or plied yarns, equipped with auto stop & reverse for conventional or untwist/re-twist methods, makes yarn twist testing an easy task for textile testing labs or factories.

Twist tester offers adjustable test length up to 500mm/20 inches for S & Z twist yarns, and inching function helps the operator to get an esteemed twist quickly. Test result in TPI / TPM is directly displayed on the touch screen.
