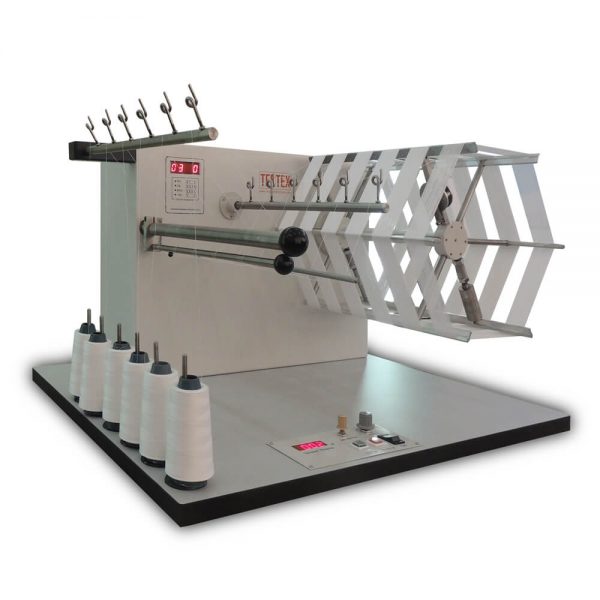

Testex TY360A Wrap Reel

Power: 220/110V 50/60 Hz

Weight: 75 kg

Dimensions: 960 x 760 x 670 mm (L x W x H)

Circumference of winch: 1000 ±1 mm

Number of wraps: 1 ~ 9,999 adjustable

Pre-tension: 2 ~ 100cn

Traveling reciprocating distance: 35 mm

Spacing of spindles: 60 mm

Reel speed: 20 ~ 280 r/min (variable)

Standards: ISO 2060, ASTM D1907/2260, BS 2010, DIN 53830, GB/T4743, GB/T14343, GB/T6838

Wrap Reel Machine, to produce skeins of yarn of a pre-determined length and number of turns for count and strength testing. 1 Metre, 36″ or 54″ circumference collapsible swift (specify). Wrap reel Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
