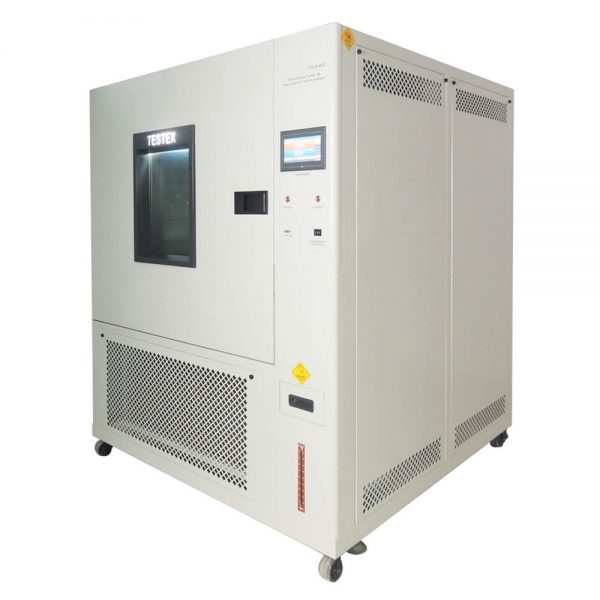

Testex TU340 Laboratory Conditioning Chamber

Power: 380V 50/60Hz 4A

Weight: 650 kg - 1000L

Dimensions: 1390 x 1300 x 1930 mm (LxWxH)- 1000L

Capacity: 80L,150L, 225L,408L,800L,1000, 1m3 ~ 8m3,

Display: Touch-screen Display

System: PLC system, programmable

Temperature Range: – 20 ~ 150 degree on request

Humidity Range: 20%-98%+/-2%

Time Display: 0-99.9h

Testing Area: ≥3000mm2

Out chamber: Paint steel chamber

inner chamber: SUS304 Stainless Steel

Thermal Insulation: 98mm thick

Before you conduct a test which has a strict requirement of the specimen, you need put specimen to the chamber, set up the specifications like temperature, thermal, humidity, to achieve a similar condition to the real climatic cycling environment of the final products.

Critical parts are imported, thus provides precise conditions from 20% to 98% RH ± 2 and -20°C to 150°C ± 0.5°C. Custom-designed and built chambers of any required capacity up to room size, with conditions down to – 40°C are available, all of the main components are made in France or Japan. A small chamber or big chamber both are available, we can customize according to your requirement.
