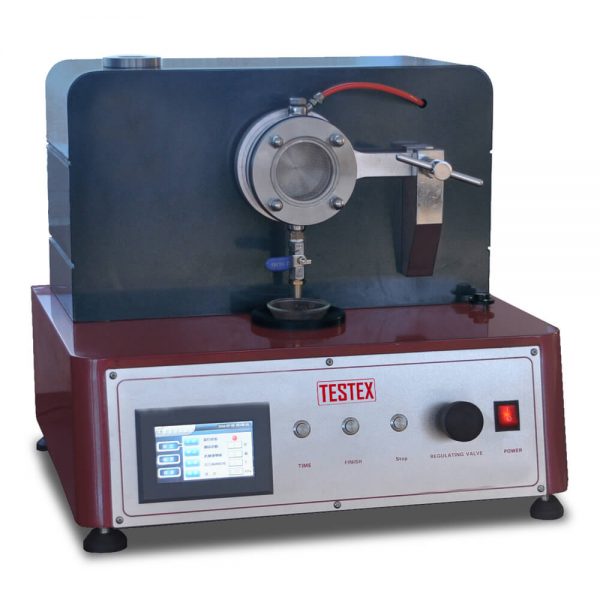

Testex TN140 Synthetic Blood Penetration Tester

Power: 220V 50Hz 100W

Weight: 70 kg

Dimensions: 650 x 615 x 670 mm (L x W x H)

Sample dimensions: 75 x 75 mm

Test area: 28.26 cm2

Pressure range: 0.5 ~ 30kPa

Features:

Provides 0.5 ~ 30 +/- 0.1 kPa air pressure to the specimen

Air pressure can be set freely, set range 0.5 ~ 30 kPa

Color touch-screen display, user-friendly operation.

Equipped with the automatic specimen clamping

Test head is made of high-quality 316 stainless steel, a high strength cover

Square metal block network: more than 50% open space; less than 5mm bending under 30kPa.
