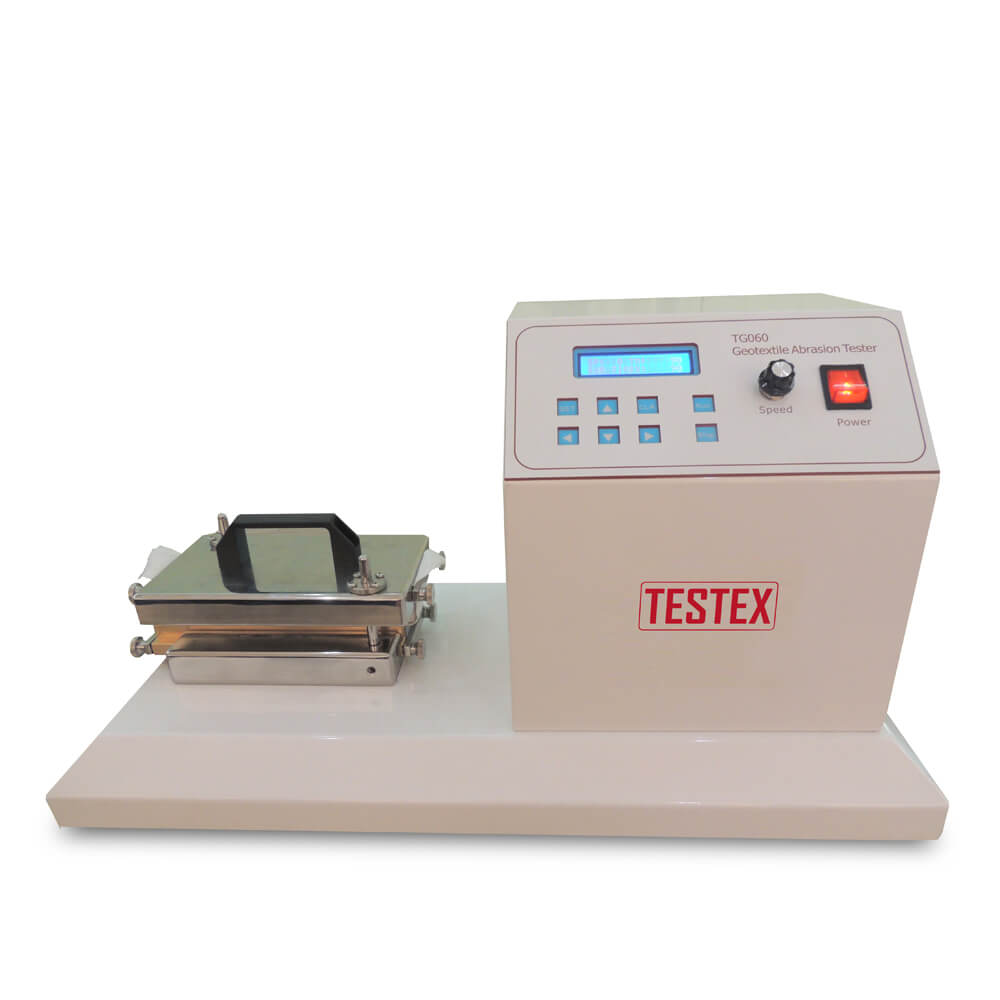

Testex TG060 Geotextile Abrasion Tester

Power: 220V 50Hz 120W

Weight: 60 kg

Dimensions: 935 x 275 x 350 mm (L x W x H)

Size of lower plate: 50 x 200 mm

Size of upper plate: 50 x 200 mm

Stroke Length: 25 ± 1 mm

Speed: 90 cycles/min

Load pressure: 6 ± 0.01 kg

Eccentricity: 12.5 mm

Sample cut template: 50 x 300 mm ± 1 mm

Geotextile Abrasion Tester, to determine the abrasion resistance of woven geotextiles, nonwoven geotextile and its related products.

Geotextile Abrasion Tester, to determine the abrasion resistance of woven geotextiles, nonwoven geotextile and its related products.

The specimen is fixed on the platform, and a specified abrasion material rubs the specimen under the specified pressure and friction action, determining the tensile strength after abrasion test. The percentage of loss of the tensile strength is reported as the resistance performance of abrasion.
