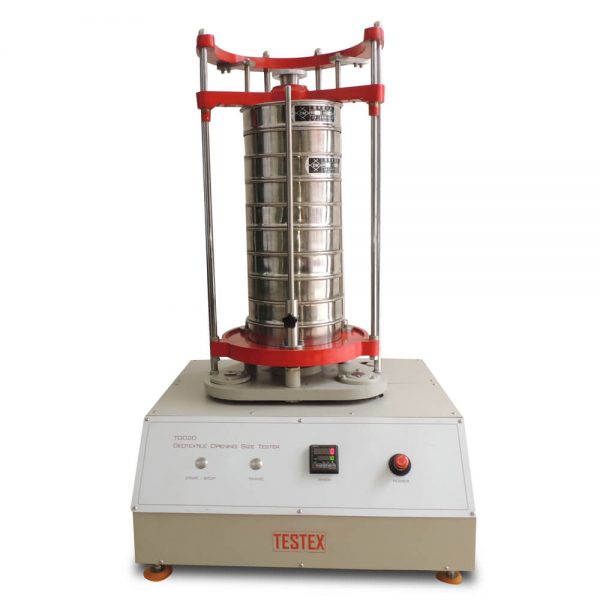

Testex TG020 Geotextile Opening Size Tester (Dry Sieving)

Power: 380V 50Hz 1000W

Weight: 210 kg

Dimensions: 600 x 560 x 1030 mm (L x W x H)

Sieve diameter: 200 mm

Amplitude: 10+/-2 mm

Lateral vibration frequency: 220 times/min

Vertical vibration frequency:150 times/min

Radius of gyration: 12+/-1mm

Preset time: 0 ~ 60min

Features:

Panasonic (Japan) servo motor and driving system

Heavy-duty base ensures stable and quiet test

Schneider (Germany) electric components and parts

Frequency adjustor offers a wide range of test speed

Includes 3 sets of stainless sieving, 10 bags of standard bead.

3 specimens can be tested simultaneously.
