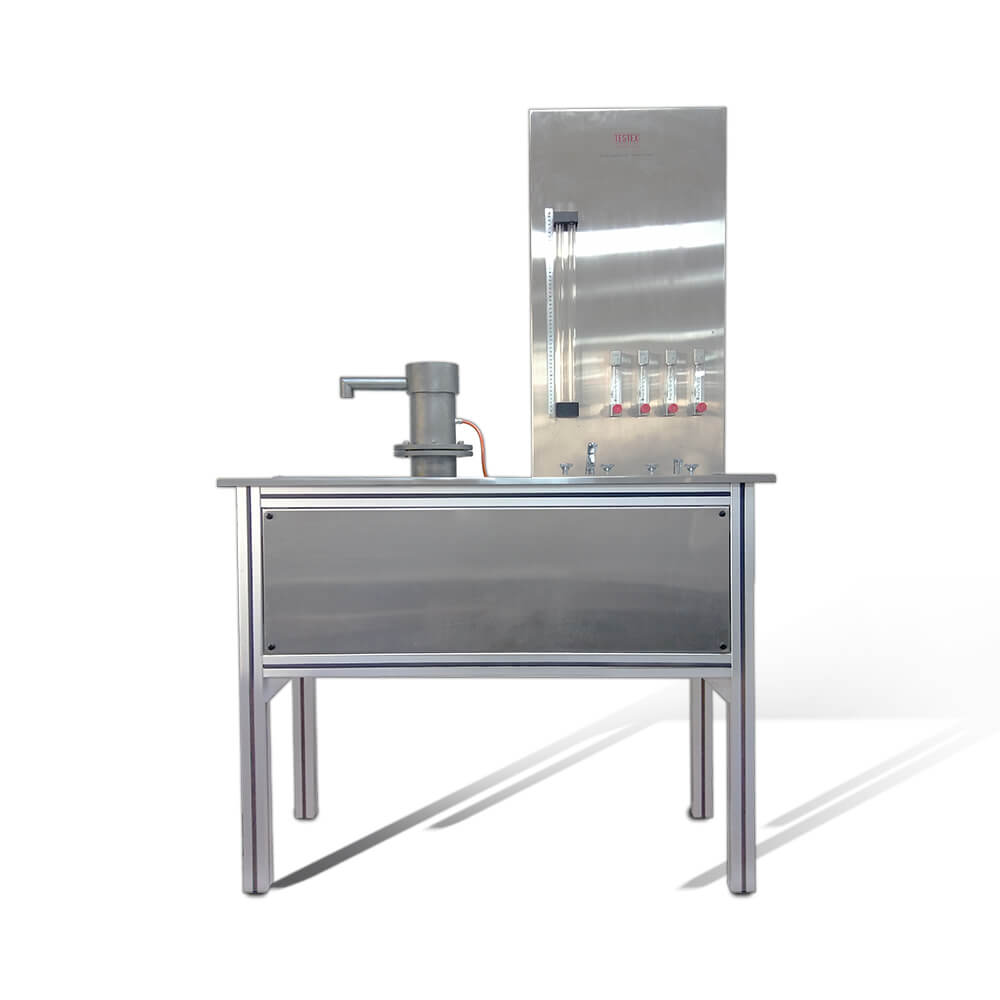

Testex TG010 Geotextile Water Permeability Tester

Power: 380V 50Hz 1000W

Weight: 187 kg

Dimensions: 1340 x 780 x 2050 mm (L x W x H)

Max pressure: 300 mmH2O

Resolution: 1 mm

Clamping area: Dia. 50 mm

Thickness range of specimen: 0.1 ~ 10 mm

Water-flow range: 0 ~ 5 L/min

Features

The whole machine is made of quality stainless steel and aluminum ensures no any rust and corrosion.

Equipped with 4 600ml/min flow-meters for lower water permeability products, and a 5L/min flow meter is equipped for high water permeability products.

Equipped-in water tank ensures water head pressure will not overload.
