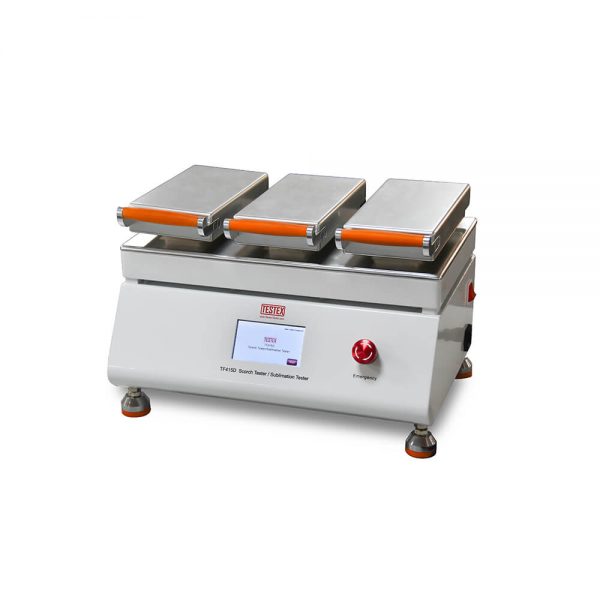

Testex TF415D Scorch (Sublimation) Tester

Power: 220/110V 50/60Hz 4A

Weight: 38 kg

Dimensions: 540 x 460 x 440 mm (L x W x H)

Large LCD display, convenient setting and operation.

3 pairs of heating plates, heating temperature of each upper and lower plate can be set individually.

Timer: 1 ~ 249s, automatically stops heating and alarms

Temp. Range: R.T. ~ 240

Temp. Accuracy: +/- 2 Deg. C

Pressure: 4kPa+/-1kPa

3 stations with heating plate dimensions 120mm x 50mm

Scorch Tester (Sublimation Fastness tester), suitable for testing the ironing or sublimation color fastness of fabrics, also the size stability when exposed to hot dry conditions.

Heating plate temperature and test time are adjustable, fitted with microprocessor temperature controller and the top plate with precisely controlled weight. The independent heating plate ensures controlling test temperature and thickness of sample individually..
