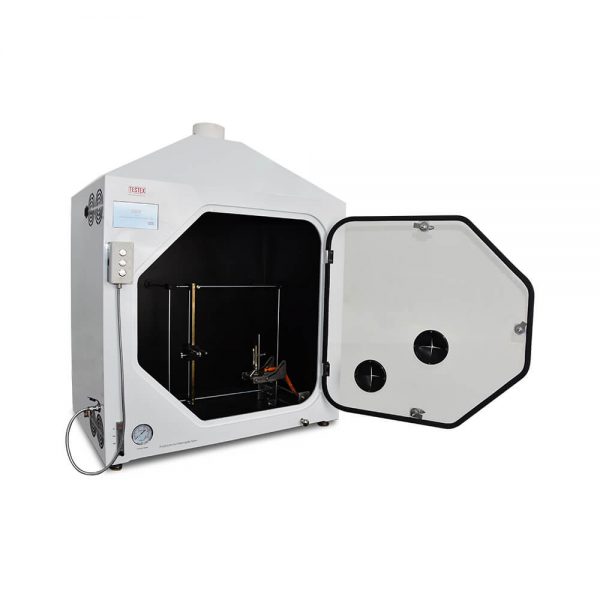

Testex TF328 Horizontal & Vertical Flammability Tester (ngang & đứng)

Power: 220/110V 50/60Hz

Weight: 160 kg

Dimensions: 1190 x 870 x 1530 mm (L x W x H)

A bench mounted draft free combustion chamber having a large inside volume of 1.0m3 and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products.

Large door and window made from toughened safety glass giving a generous view of the specimen during a test.

Specimen holders.214

Fully adjustable horizontal and vertical specimen supports.

A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.

Two access ports enabling easy entry to the chamber for movement of the burner and specimen.

A burner wing tip.

Standards:UL HB, UL94 V0, V1, V2, 5VA, 5VB, VTM-0, VTM-1, VTM-2, HF-1, HF-2, HBF. IEC 60695-11-10, 60707, ISO 1210, 9770, 9772, 9773, GB/T2408, 8332.

UL94 Horizontal & Vertical Flammability Tester, used in testing labs to check the plastic materials parts’ flammability for ensuring the safety of electronic devices or appliances. The apparatus is supplied as a complete system incorporating all the features necessary for ease of use safety. It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.
