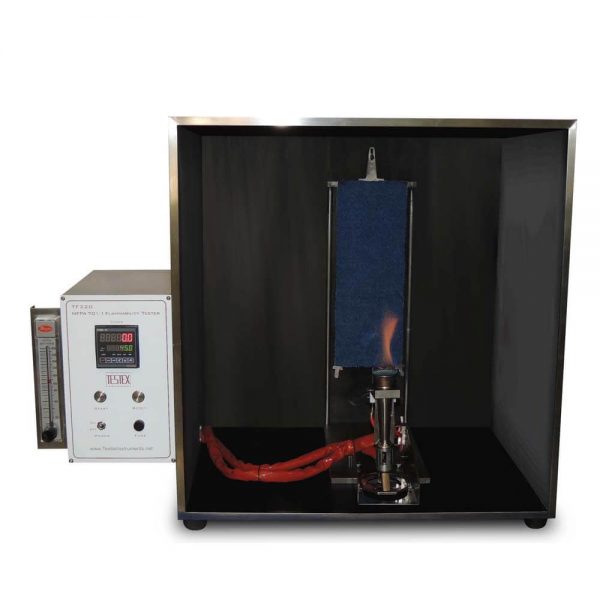

Testex TF320 NFPA 701-1 Flammability Tester

Power: 220/110V 50/60Hz

Weight: 100 kg

Dimensions: 900 x 510 x 720 mm (L x W x H)

Open-type burning chamber structure;

Chamber body in calcium silicate board, and wrapped by stainless steel external;

Standard Meker laboratory burner;

Record burning time automatically;

Auto-ignition mode to avoid operative error;

Timer accuracy up to 0.1second;

Provide with a standard specimen holder

Standards: NFPA 701-2004 Test Method 1

NFPA 701-1 Flammability Tester, to determine the ignition resistance properties of draperies and other hanging fabrics according to test method NFPA 701#1, and it is suitable for single-layer or multi-layer fabrics, but not suitable for fabrics with density larger than 700g/m2 (21oz/yd2).
