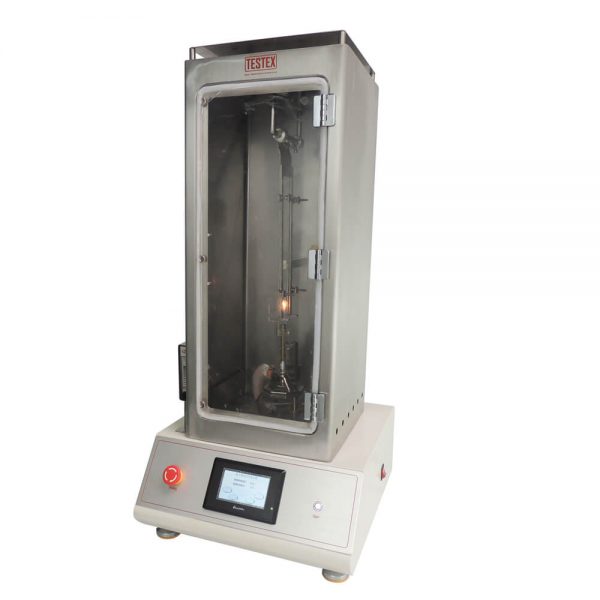

Testex TF312 Vertical Flammability Chamber

Power: 220/110V 50/60Hz

Weight: 65 kg

Dimensions: 650 x 580 x 1120 mm (L x W x H)

Time Display and accuracy: 0-999.9s, 0.1s

Ignition time: 12 ± 2 s or 3 ± 0.2 s

Burner size: 10mm/11mm x barrel length 76+/-6mm

Burner to specimen: 19 or 17 mm

Dimension of holder outside: 442 x 76/442 x 89mm, interior 356×51 mm

Standards: ASTM D6413, CALIF TB117, DOC-FF 3/71, FTMS 191-5903, CPAI 84

Vertical Flammability Chamber, designed to measure the flame resistance of textiles(vertical test), products like children’s sleepwear, evening dress of children, adults, special industrial wearings, curtain and etc.

The burner ignites the specimen automatically, and ignition time is programmable; after-flame time and afterglow time are timed automatically and shown on the display. The user-friendly design of the control panel, Touch screen is equipped to make the operation conveniently, the test results are displayed on the screen after the vertical flammability test.

Comprises a draft-free stainless steel flammability chamber with an observation window for easy test viewing. Specimen holders, burner and associated hardware are dependent on the test standard and must be specified.
