Testex TF311 Horizontal Flammability Tester

Power: 220/110V 50/60Hz 2A

Weight: 46 kg

Dimensions: 560 x 460 x 780 mm (L x W x H)

Fire nozzle dimension: 9.5mm

Fire height: 38mm+/-2

Sample clamp: 360 x 100mm / Interior dimension: 330x50mm

Marked line Starting point: 38mm / End point 292mm from Ignition point

Nozzle to Sample: 19mm

Standards: ISO 3795, FMVSS 302, GB/T 8410

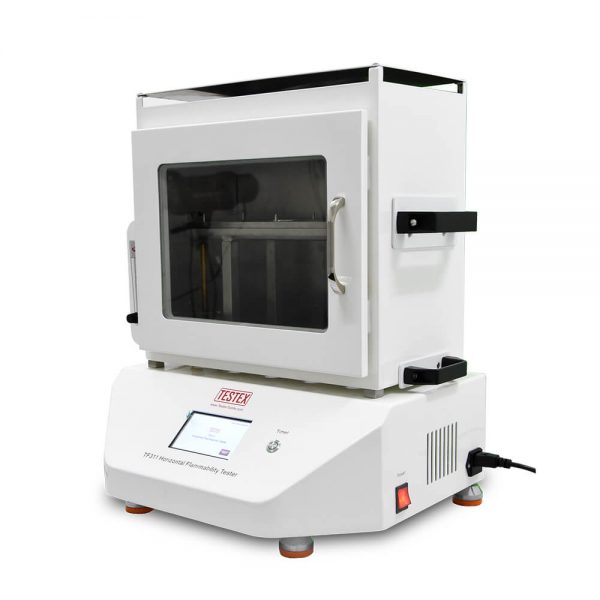

Horizontal Flammability Tester, to determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Automatic igniter is equipped to ensure the horizontal flammability tester is safe and easy to operate, comprising draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
