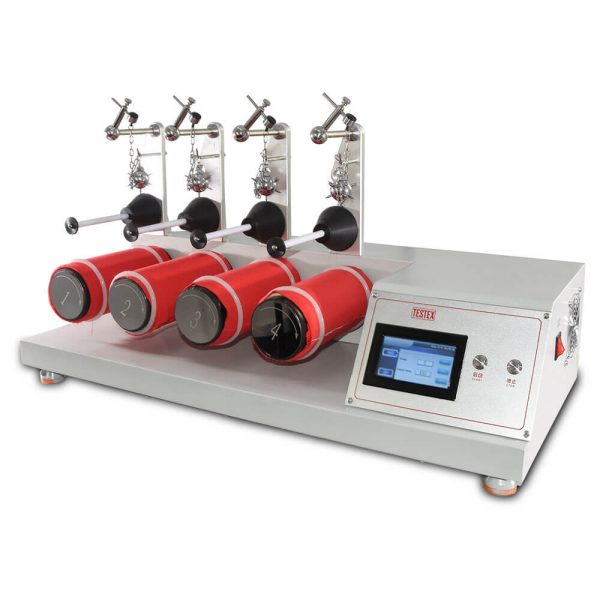

Testex TF220 ICI Mace Snag Tester

Power: 220/110V 50/60Hz

Weight: 88 kg

Dimensions: 1040 x 500 x 640 mm (L x W x H)

Snag Mace Diameter: 31.75 mm

Mace Weight: 160 g

Mace Prominent length: 10 mm

Rotation Speed: 60+/-2rpm

Standards: ASTM D3939, GB/T 11047, JIS L1058, MN405E

ICI Mace Snag Tester, to determine the tendency of fabrics to snag (pull yarn loops from fabric) in normal wear (mace snag). ICI Mace Snag Tester complies with ASTM D3939, etc. Please contact us for more information about snagging test. Provided with 4 rotating test cylinders, fitted with sleeves of test fabric, mace balls with tungsten carbide points and controlled by a predetermined electronic counter.
