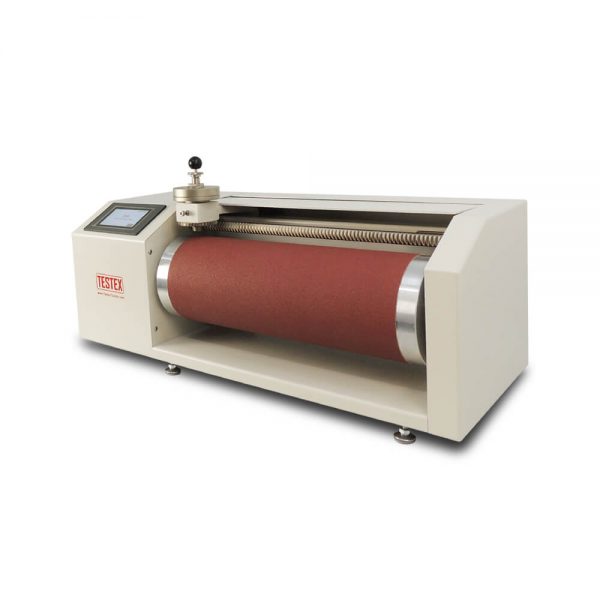

Testex TF215 DIN磨损测试仪

Manufacturer: Testex

Model: TF215

Origin: China

Warranty: 12 months

Power: 220/110V 50/60Hz 3A

Weight: 70 kg

Dimension: 890 x 410 x 590 mm (L x W x H)

Load Weight: 5N,10N

Roll Dim.: Dia. 150 x Length 460mm

Rotation speed: 40rpm

Holder Moving distance: 4.2mm each rotation

Standards: DIN 53516, ISO 4649, BS EN 12770, BS-903, SATRA TM174, GB/T9867

DIN Abrader(abraser) is suitable for the abrasion resistance test of polyester sole, shoe sole, and polymer sheet material. When the wear wheel rotates, the sample is rubbed in a certain degree of sandpaper to generate abrasion, so as to evaluate the wear performance. The abrasion tester provides a wide testing area to meet the most request. Additional balance is required.
