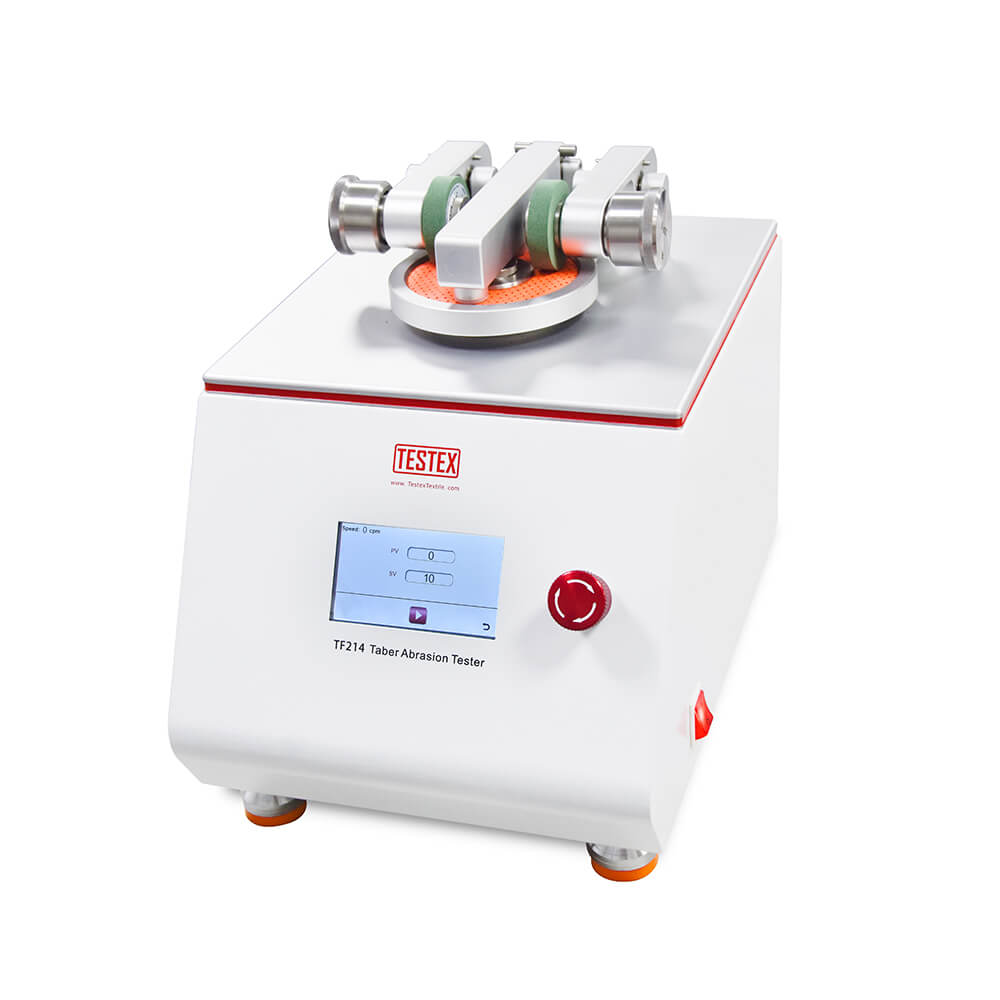

Testex TF214B 泰伯磨损测试仪

Manufacturer: Testex

Model: TF214B

Origin: China

Warranty: 12 months

Power: 220/110V 50/60Hz

Weight: 58 kg

Dimension: 790 x 660 x 460 mm (L x W x H)

Grinding Wheel: Dia. 2 inch

Wear Round Centre Spacing: 53 mm

Gyration Speed :60±1 rpm or 72±1 rpm

Counter: 0-999,999 times

Weights: 2pcs 250g, 2pcs 750g (used to produce 250g, 500 g, 1000 g mass on the specimen)

Standards: ISO 5470, ASTM D3884, FED.CCC.5306 / 5309, TAPPI T476, DIN 53754 / 53799 /53109, SAE J948

Taber Abrasion Tester is a testing instrument to test the wear resistance of all kinds of structures including fabrics, leather, and rubber, paper, metals, paints, plated surfaces, coated materials, glass, etc.

Taber Abraser uses the X pattern of abrasion produced by the rotary action of a pair of abrasive wheels. It supplies with a full range of auxiliary weights, specimen holders. The abrasive wheels and wheel refacer are offered on request.
