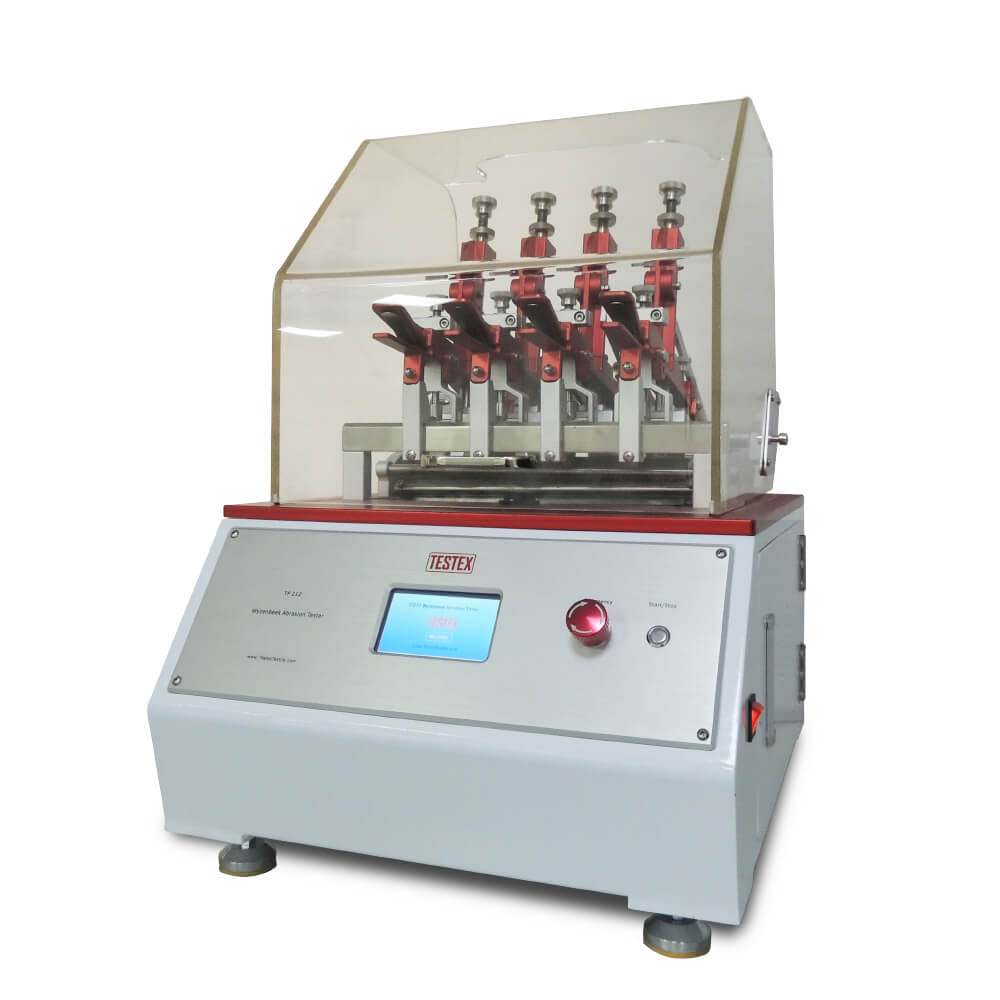

Testex TF212 Wyzenbeek 耐磨测试仪

Manufacturer: Testex

Model: TF212

Origin: China

Warranty: 12 months

Power: 220/110V 50/60Hz 3A

Weight: 103 kg

Dimension: 990 x 630 x 900 mm(L x W x H)

Testing stations: 4 groups

Oscillatory frequency: 90 CPM

Oscillatory arc: 76 mm

Dimension of sample: 245 x 73 mm

Tension on sample: 4 lbf (17.8N), adjustable

Load on sample: 3 lbf (13.4N), adjustable

Standards: ASTM D4157

Wyzenbeek Abrasion Tester, a handy instrument to conduct the Wyzenbeek wear resistance test, in which fabrics being rubbed against a standard abrasive or a wire mesh screen with a backward and forward motion over a curved surface. Wyzenbeek abrasion tester applies to automotive and furniture industry fabric manufacturers working to US Standards Motor driven with 4 abrasion heads and electronic digital counter to control the number of cycles.

Suction manifolds to connect to auxiliary vacuum cleaner

Sealed transmission drive for quieter operation
