Testex TF178 Shrinkage Template & Ruler

Manufacturer: Testex

Model: TF178

Origin: China

Warranty: 12 months

Weight: 4 kg

Dimensions: 670 x 650 x 80 mm (L x W x H)

Dimension of template: 250mm, 350mm, 500mm

Shrinkage Scale: 0%~20%

Stretch Scale: 0%~20%

Standards: AATCC 135/150/160/179, BS EN 3759, ISO 3759, BS4931

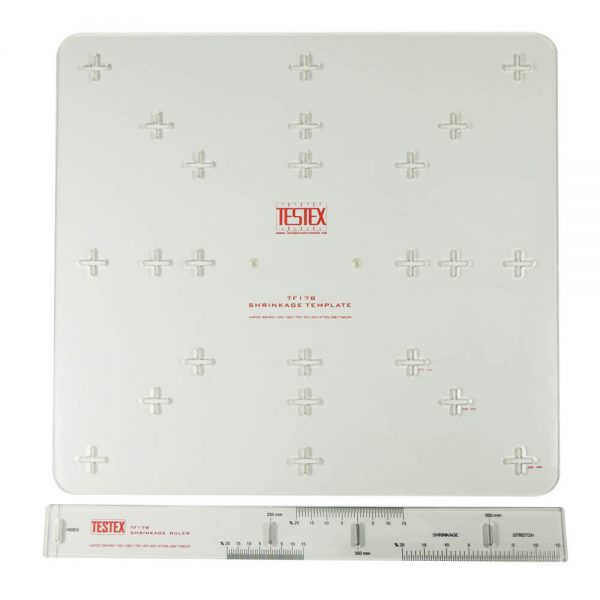

Shrinkage Template & Ruler is used to mark the origin size of the testing fabric and track its shrinkage status by the scale on the ruler, built with high-transparent acrylic makes this template ruler very easy to observe the dimension change and calculate the shrinkage scale and stretch scale. And it combines the different test standards in one template, including 500mm, 350mm, 250mm. Frame size is 610mm x 610mm; Shrinkage Scale is 0%~20%, and Stretch Scale is 0%~ 20%.
