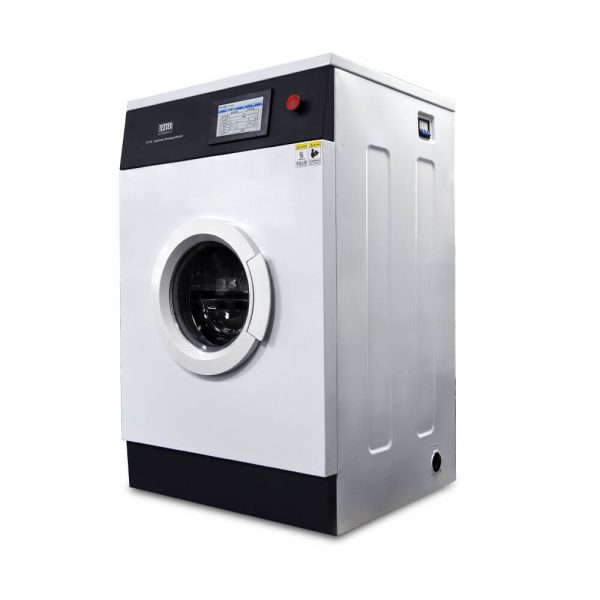

Testex TF176 Automatic Shrinkage Washer

Manufacturer: Testex

Model: TF176

Origin: China

Warranty: 12 months

Power: 220/110V 50/60Hz 6.5KW

Weight: 285 kg

Dimensions: 560 x 360 x 740 mm (L x W x H)

Interior rowing box diameter: 5 ± 0.5 cm

Interior rowing box depth: 5 ± 0.5 cm

Inside and outside cylinder radial distance: 8 ± 0.1 cm

Number of lift sheets: 3 pieces

Raised wing height: 5 ± 0.5 cm

Revolution speed: Washing 52r/min, Drying 500±20r/min

Water Level Control: low level = 10cm, high level = 13cm

Temperature Detection Room: temp. ~ 99℃±1℃, readability 0.1℃

Heating power: 4 ± 2% KW

Rated loading capacity: 5 +/- 0.05kg

Rotating Speed: 30 ~ 800 r/min

Interior rowing box vloume: 70L

Standards: ISO6330, ISO 5077, BS4923, FZ/T70009, EN25077, EN 26330, GB/T8629, GB/T8630, JIS 1909, M&S IWS

Automatic Shrinkage Washer, used for testing the dimensional stability of fabrics, clothing and other textiles after washing. Rated loading capacity is 5+/-0.05kg; with touch screen control, it is a model with similar Functions of Wascator.
