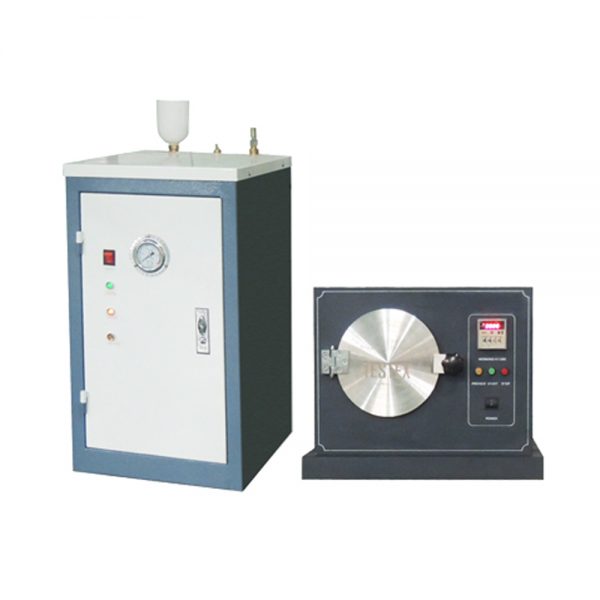

Testex TF170 Steaming Cylinder

Power: 220V 50/60Hz 8A

Weight: 60 kg

Dimensions: 560 x 360 x 740 mm (L x W x H)

Automatic timing, 1-9999 mins, stops steaming and warns if the set time met.

Material: Stainless steel

Standards: ISO 3005, BS 4323, IWTO 29-76, M&S P8, NEXT15

Steaming Cylinder, equipped with built-in Steam Generator. The steaming cylinder is used to determine the shrinkage of unstressed fabric samples subjected to steaming in a closed chamber. The Steaming Stability Template is suitable for use with steaming cylinders when testing fabrics for relaxation shrinkage, to mark the fabrics before testing using a benchmark of 250mm and to read shrinkage directly in percentage after testing.

Steaming generator is offered

Equipped with pressure safety device

Equipped with Exhauster and drainage device
