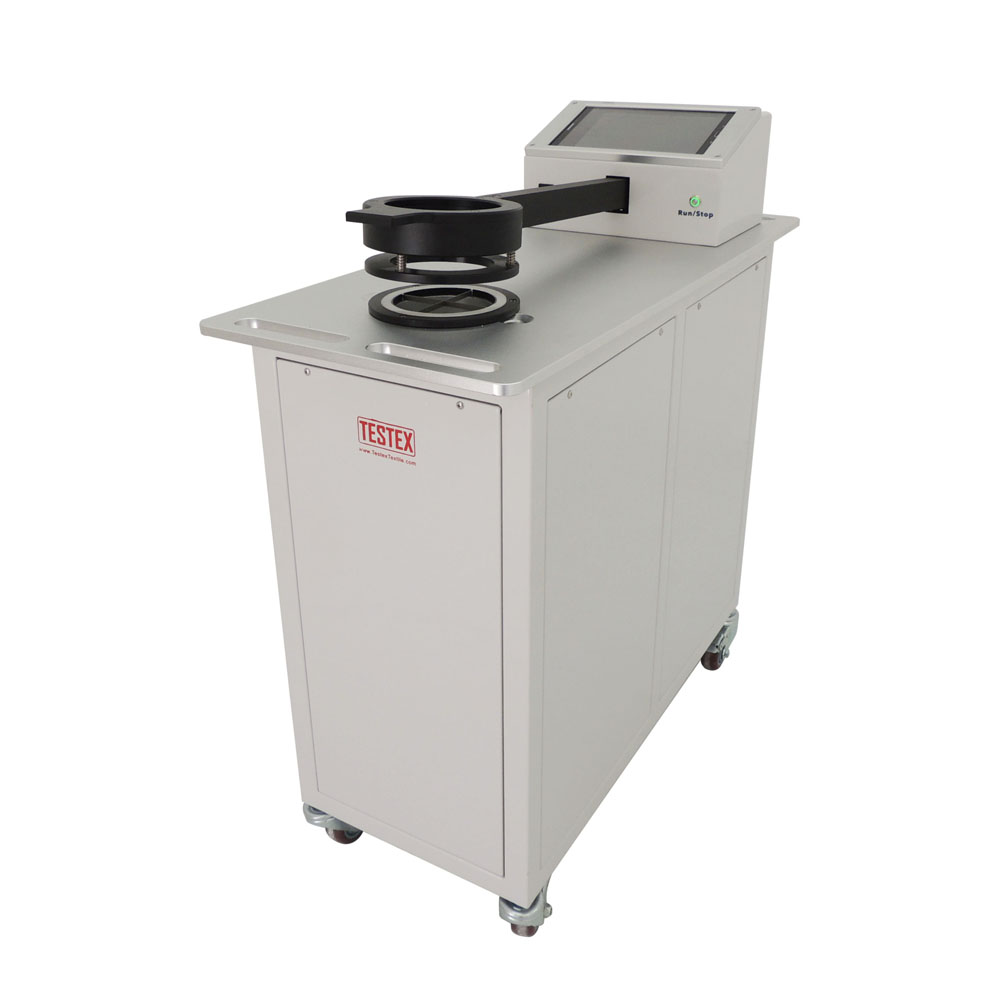

Testex TF164E Auto Air Permeability Tester

Manufacturer: Testex

Model: TF164E

Origin: China

Warranty: 12 months

Power: 220/110V 50/60Hz

Weight: 121 kg

Dimensions: 1000 x 450 x 1140 mm (L x W x H)

Units: mm/s, cfm, cm3/cm2/s, l/m2/s, l/dm2/min, m3/m2/min, m3/m2/h and dm3/s

Test Heads: 20 cm2

Test pressure: 10 ~ 2,500 Pa

Measuring accuracy: <+/-2%

Max thickness of specimen: 0 ~ 10 mm

Standards: ASTM D737, ISO 9237

Auto Air Permeability Tester, is used to determine the air permeability of fabric totally automatically. With its wide measuring range, it is suitable for all kinds of knitted, woven, non-woven, coated fabrics, paper, film, leather, etc.

A test sample is placed on the clamping head; parameters of test are set on the Android based software on the Samsung pad connected with machine. By pressing down the upper clamping arm the system automatically starts, the system automatically adjusts machine and shift nozzles if required; after a few seconds the test results are then displayed and the excel report is generated, and the test results are displayed on the Samsung pad.
