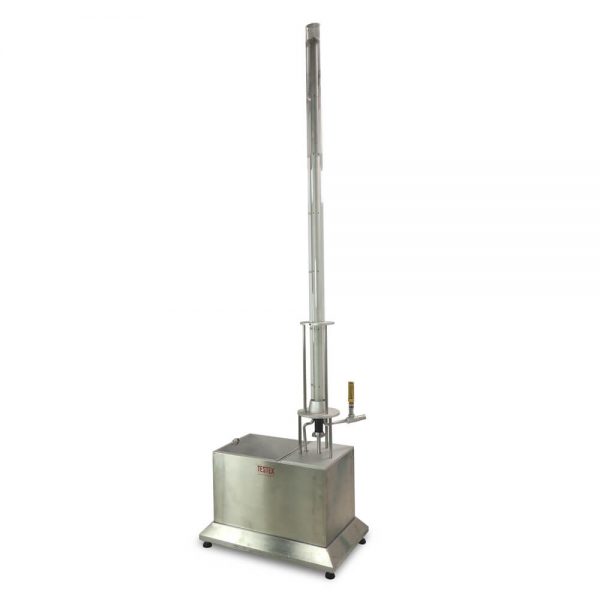

Testex TF161 Rainproof Tester

Weight: 139 kg

Dimensions: 460 x 460 x 3300 mm (L x W x H)

Test Dimensions: 200x200mm

Blotting Paper Dimensions: 152x152mm

Sample Nip Width: 152mm

Sample Nip Space Between: 165mm

Sample Nip Dimensions: 178x229mm

Nozzle Diameter: 0.99±0.013mm

Nozzle Space Between sample: 305mm

Standards: AATCC 35, BS EN ISO 22958, GB/T 23321

Rain Tester, widely used in labs to test the penetration resistance performance of fabrics or composites under different intensities of water impact(by stimulating the rain dropping gravity impact via different water level inside the tube, pre-determined according to different standards). Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standardized blotting paper, which is weighed before and after each test. The rain is formed by a column of water, which can be adjusted from 600mm to 2400mm.
