Testex TF160 Spray Rating Tester

Weight: 11 kg

Dimensions: 360 x 360 x 630 mm (L x W x H)

Nozzle: 19 holes of Di 0.9 mm

Angle of holder: 45°

Holder: 150 mm, 150 mm below the nozzle

Measuring Cup: 250 ml

Standards: ISO 4920, AATCC 22, BS EN 24920, BS 3702, M/S P23/P133, NEXT 23

Spray Rating Tester, to determine the surface wetting resistance of fabrics, which may or may not have been given a water-resistant or water-repellent finish.

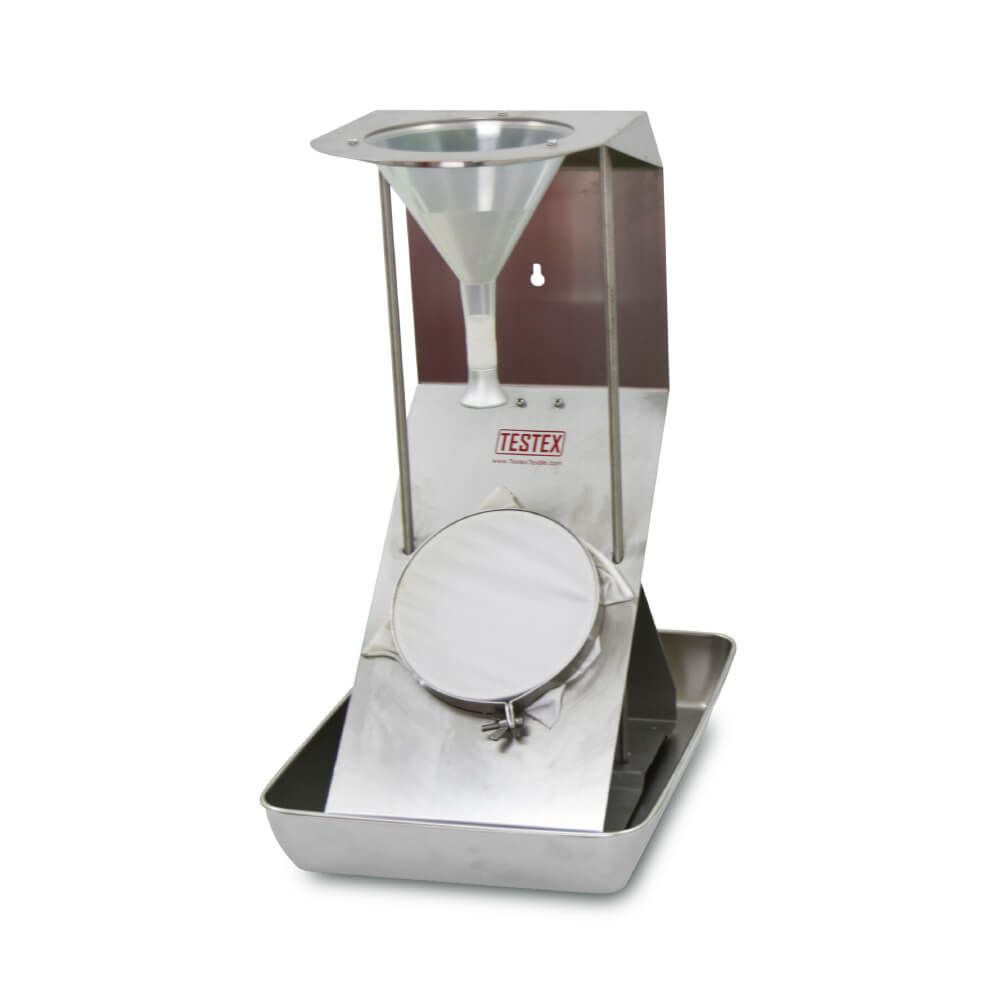

Spray rating tester consists of a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45° and 150mm below the nozzle.
