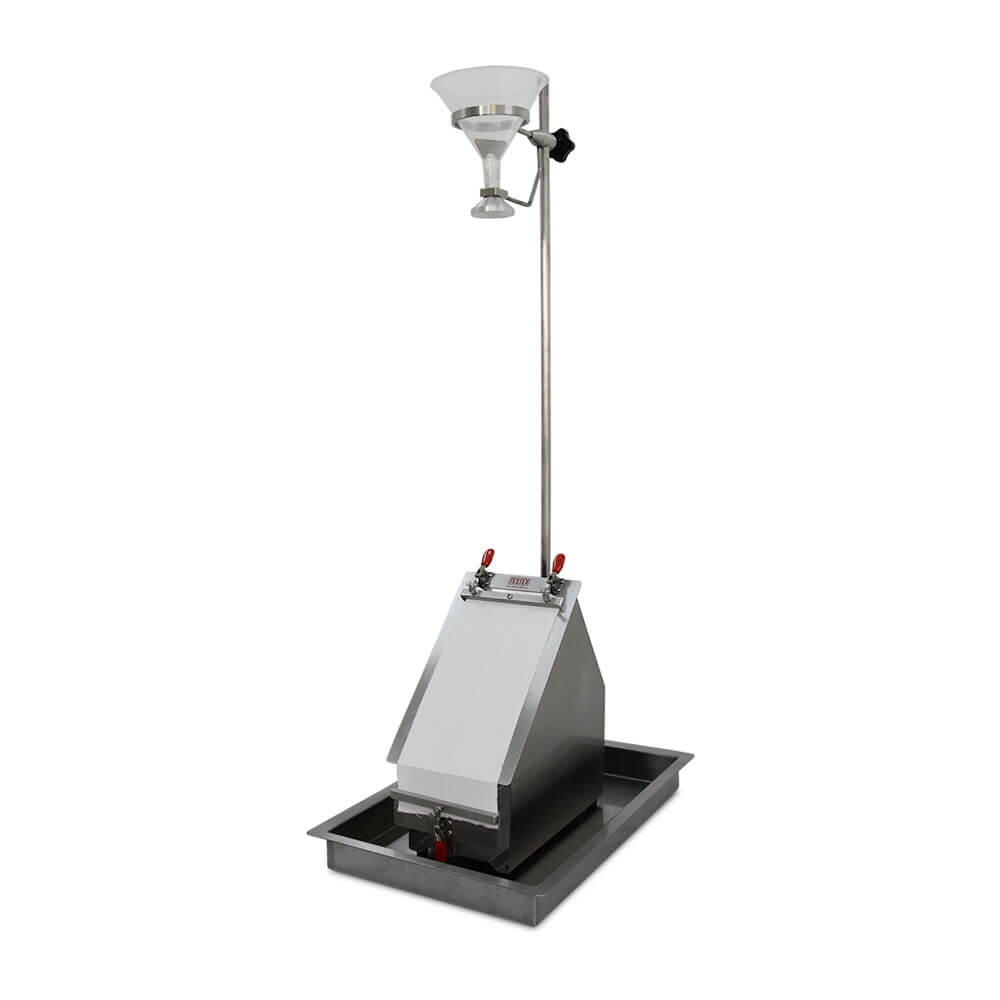

Testex TF159 Impact Penetration Tester

Weight: 27 kg

Dimensions: 440 x 290 x 1280 mm (L x W x H)

Size of the spray head: 56mm diameter

Hole of spray head: 1mm diameter, 25 pcs.

Distance from the bottom of spray head to the centre of specimen: 600 mm

The volume of tested water: 500 ml

The width of clamp: 152 mm

Angle: 45°

The specimen size: 178 x 330 mm

Standards: AATCC 42

Impact Penetration Tester, is to determine the resistance of fabric to the penetration of water by impact, and thus can be used to predict the probable resistance of fabrics to rain penetration. It is especially suitable for measuring the penetration resistance of garment fabrics.
