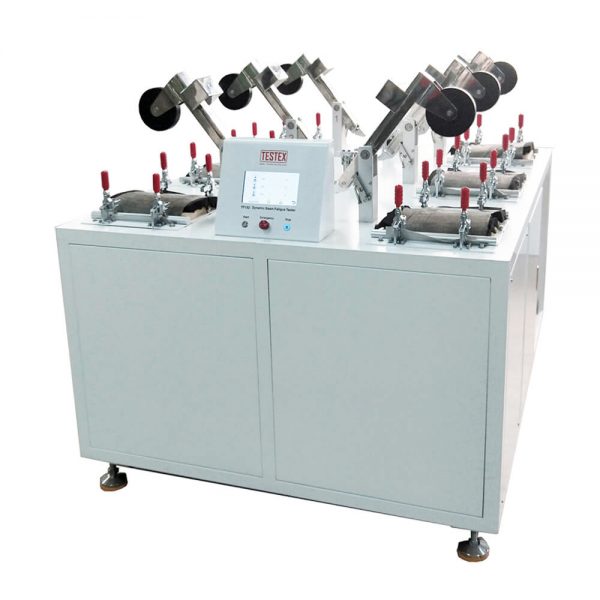

Testex TF152 Dynamic Seam Fatigue Tester

Power: 220/110V 50/60 Hz 0.4 ~ 0.7Mpa

Weight: 350 kg

Dimensions: 1600 x 860 x 1450 mm (L x W x H)

Testing frequency: 25+/-2 cycle/min

Testing cycles: 7,000

Impacting mass: 3.75 kg

Foam composite: 228.5 x 280 x 178 mm

Dimensions of sewn specimen: 360 x 255 mm

Driving mode: Pneumatic

Standards: ASTM D4033

Dynamic Seam Fatigue Tester, to determine the strength of upholstery seam constructions covering a standard foam composite cushion by imposing a cyclic, impact and penetrating load.

A rubber-faced wheel of 127mm (5”) diameter impacts the fabric from a height of 150mm (6”) with a mass of 3.75 kg (8.25lbs), 25 times per minutes for 7000 cycles. Compressed air is required.

Dynamic Seam Fatigue Tester is 3 work positions, and 6 positions offered on request.
